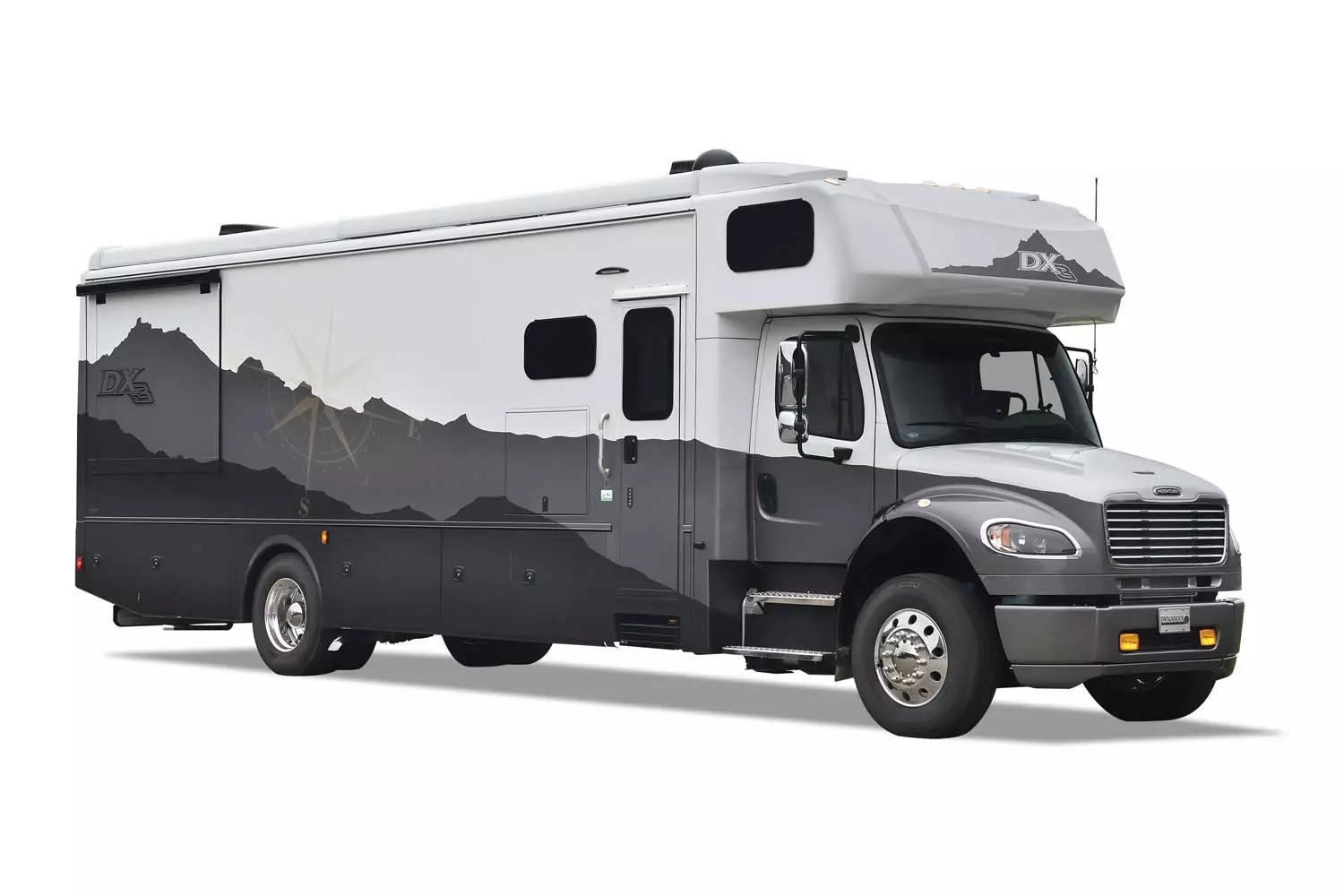

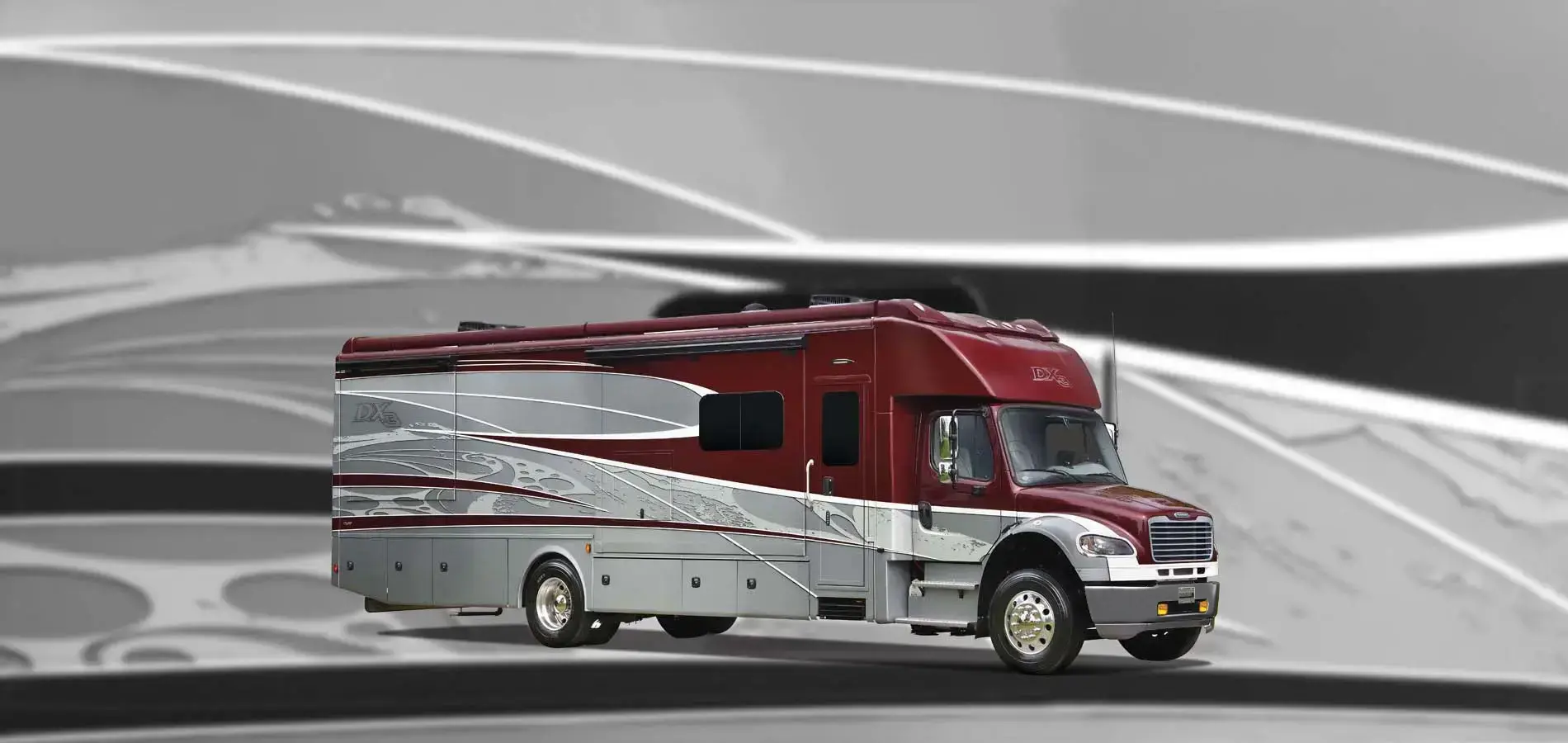

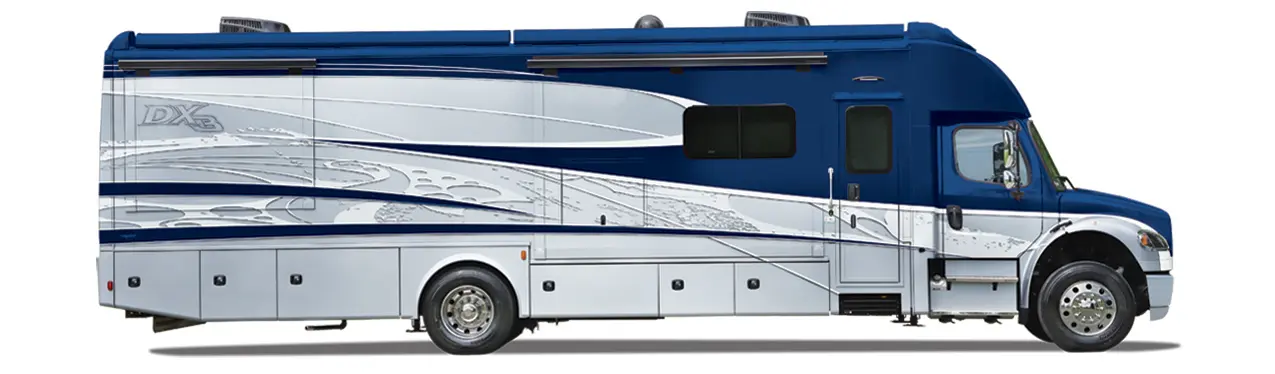

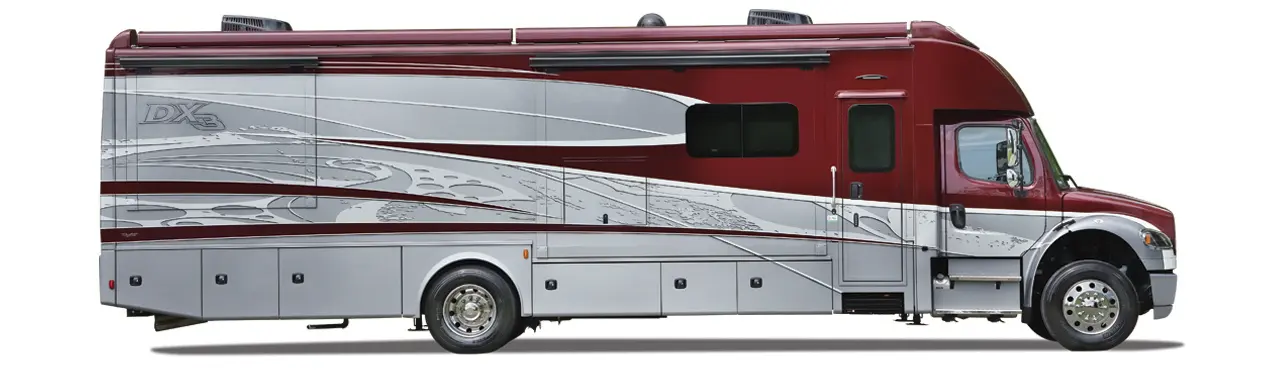

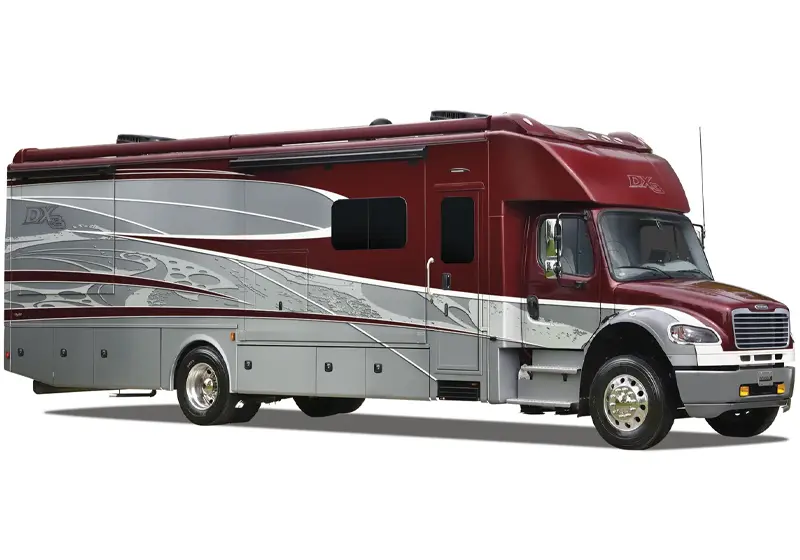

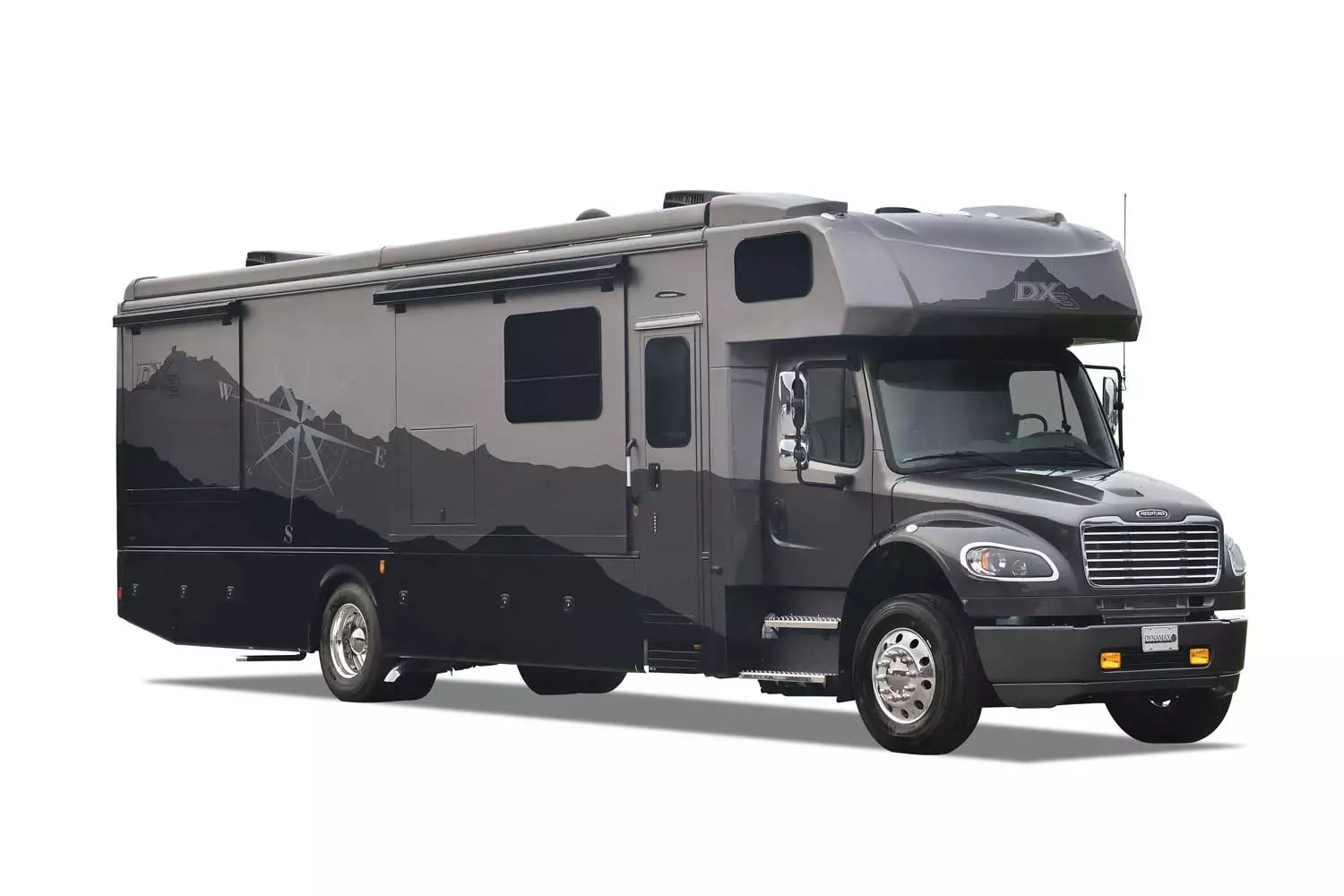

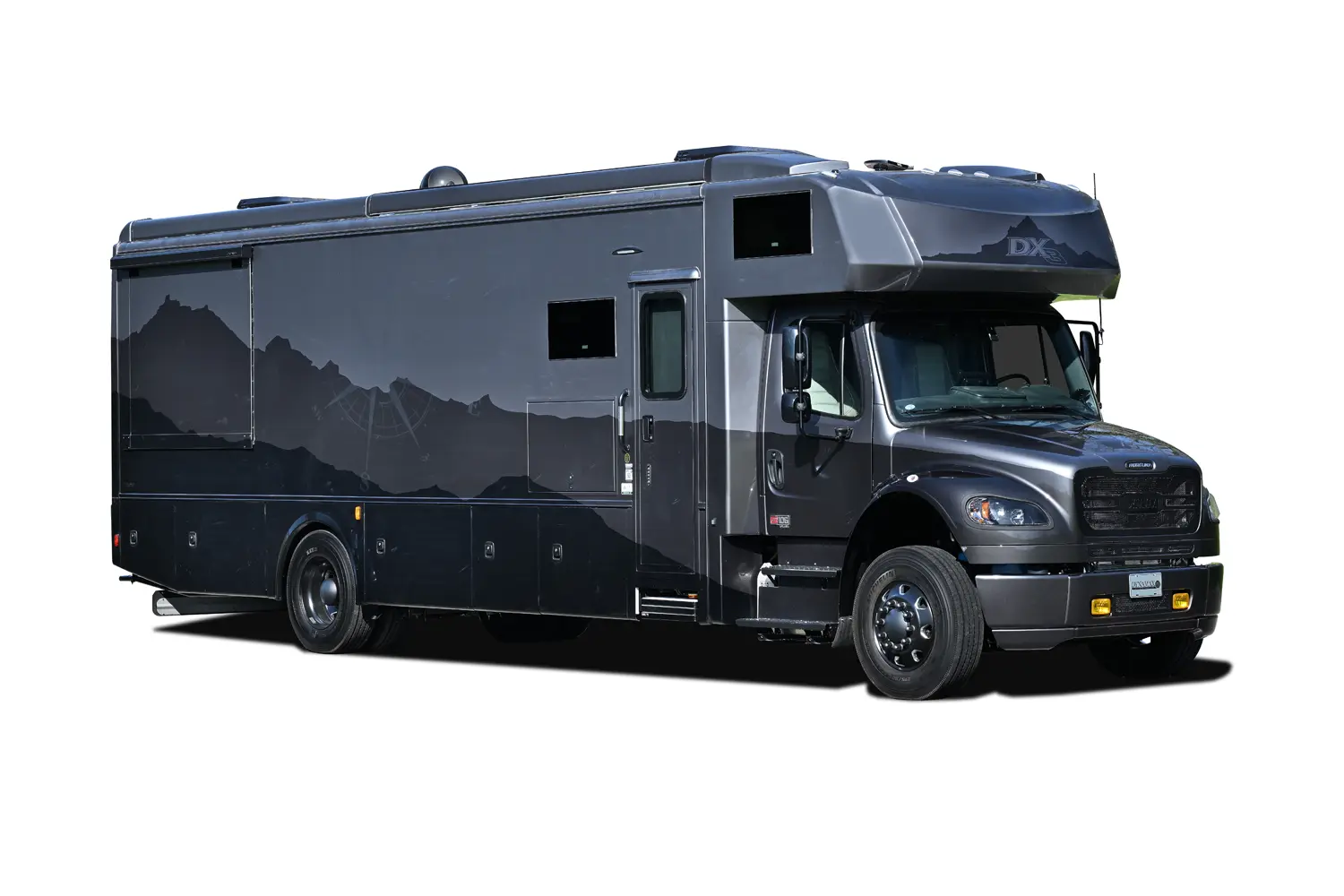

DX3 Class C Motorhome

The DX3 emanates a legendary level of power, prestige, and precision. It turns heads with its impeccable paint schemes and eye-catching curb appeal. A look under the DX3’s hood reveals an impressive powerhouse that showcases the Detroit DD8 7.7L 375 HP engine and the Allison 3200 TRV automatic transmission, resulting in remarkable torque (1,050 lb.-ft.) and towing capacity (20,000 lbs.). All this power and performance is perfectly matched with a living space that exceeds expectations.


SPECIAL FEATURES

  • 16.0 Cu. ft. Stainless Steel Residential Refrigerator with Ice Maker
  • Hardwood Cabinetry
  • 400D Diesel Aqua-Hot Hydronic Heating System
  • Kenwood 7" Touch Screen Dash Infotainment System with Apple® CarPlay™ / Android® Auto™ Functionality
  • Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to

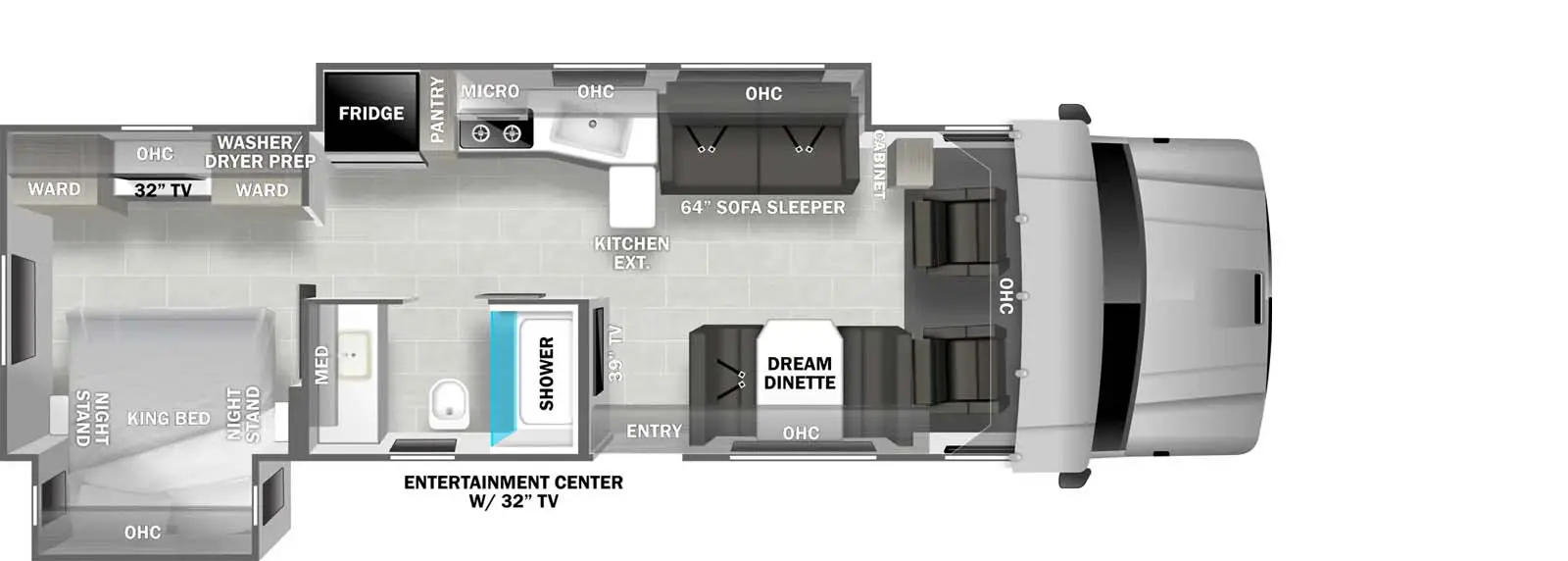

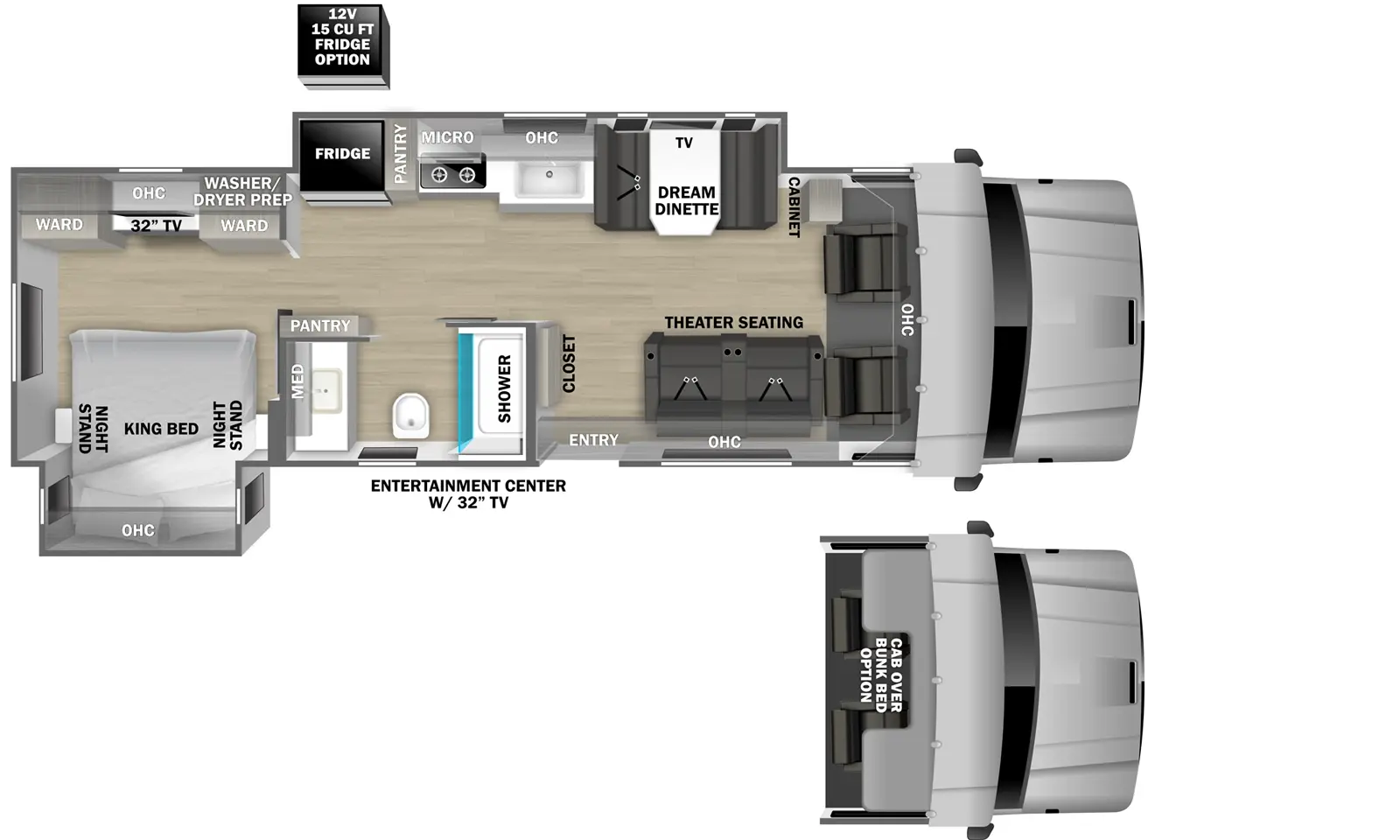

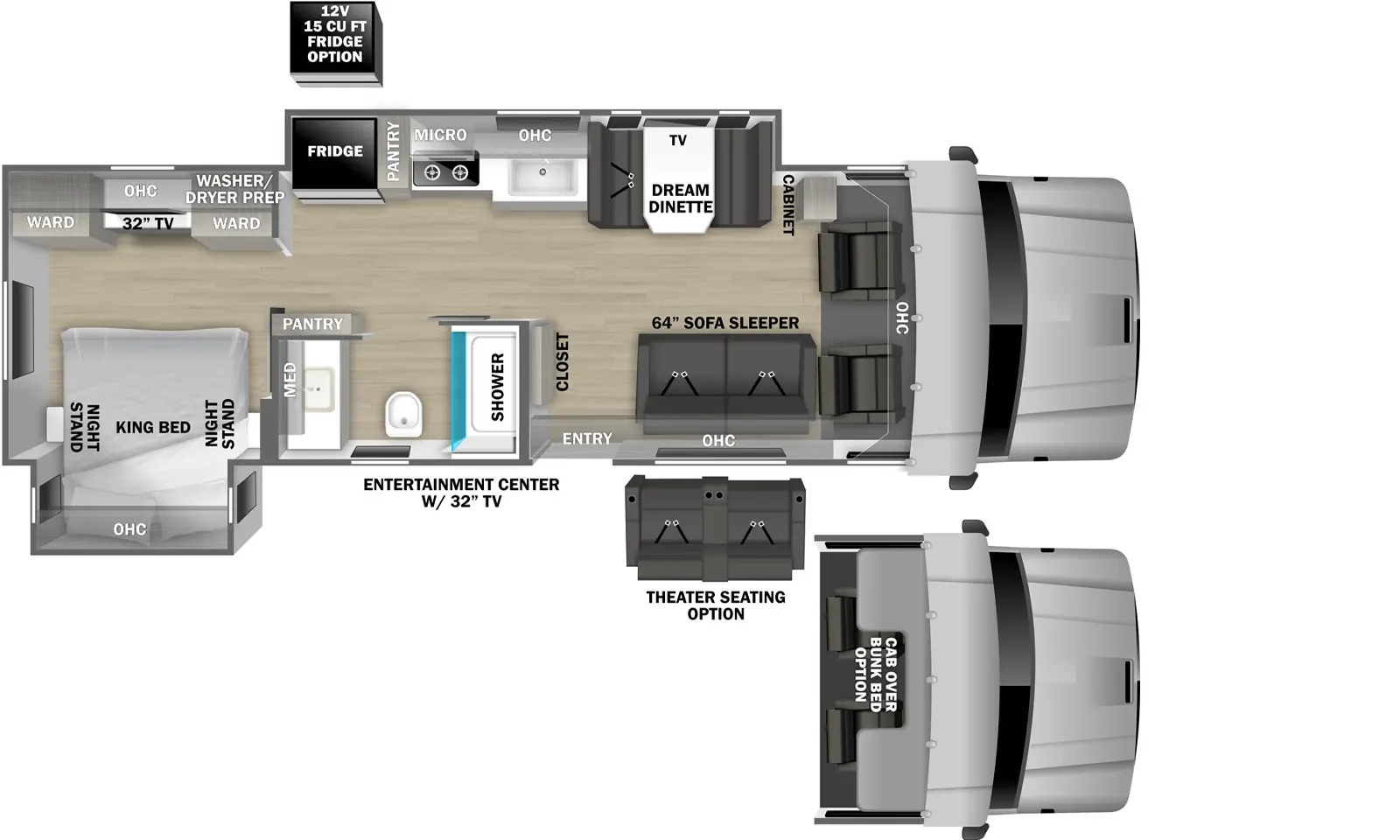

Floorplans

Print

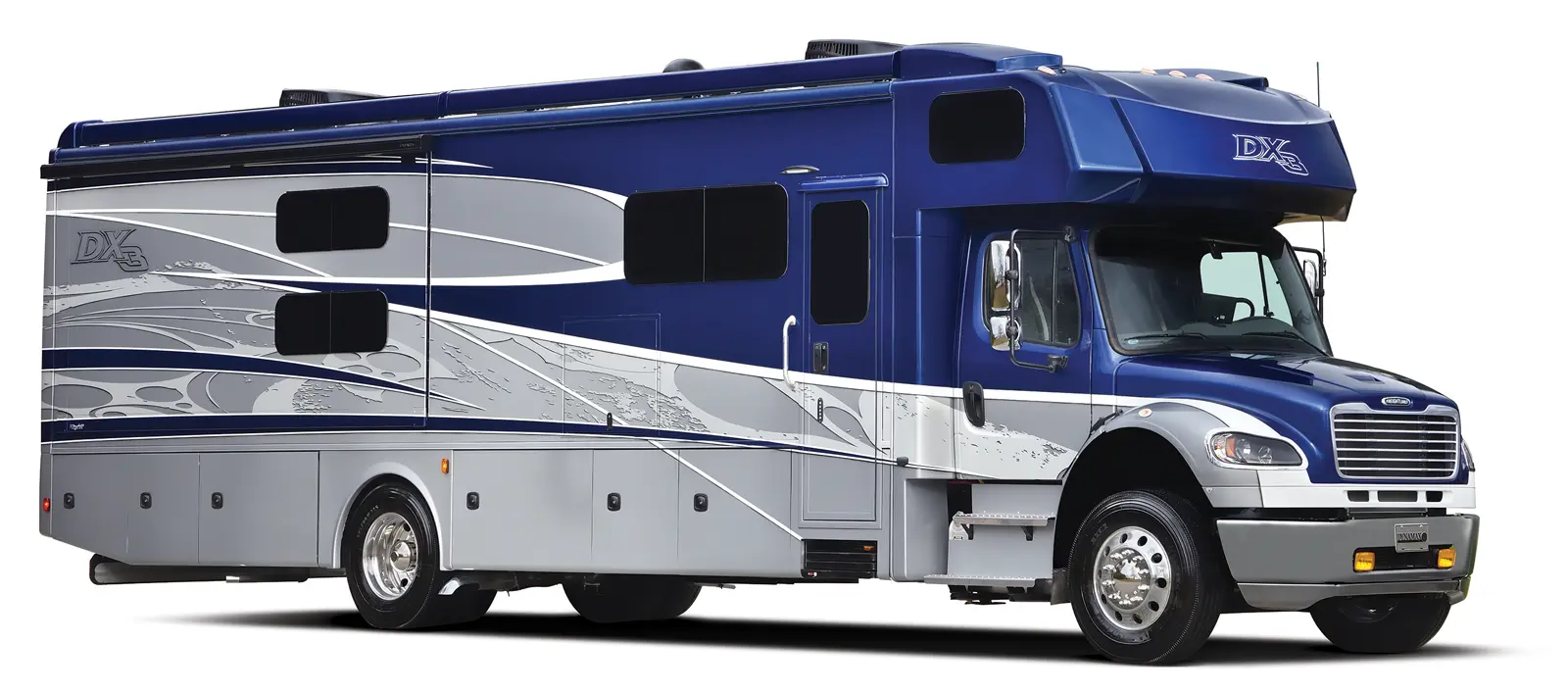

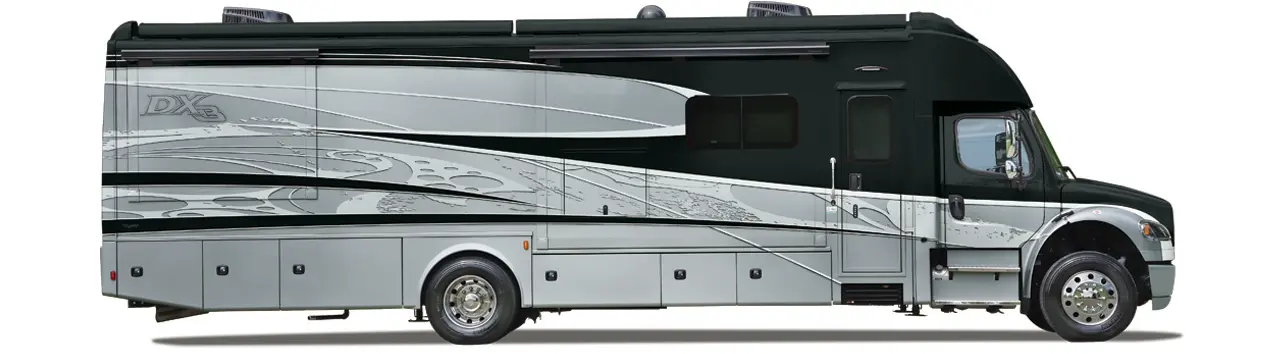

DX3 Motorhome

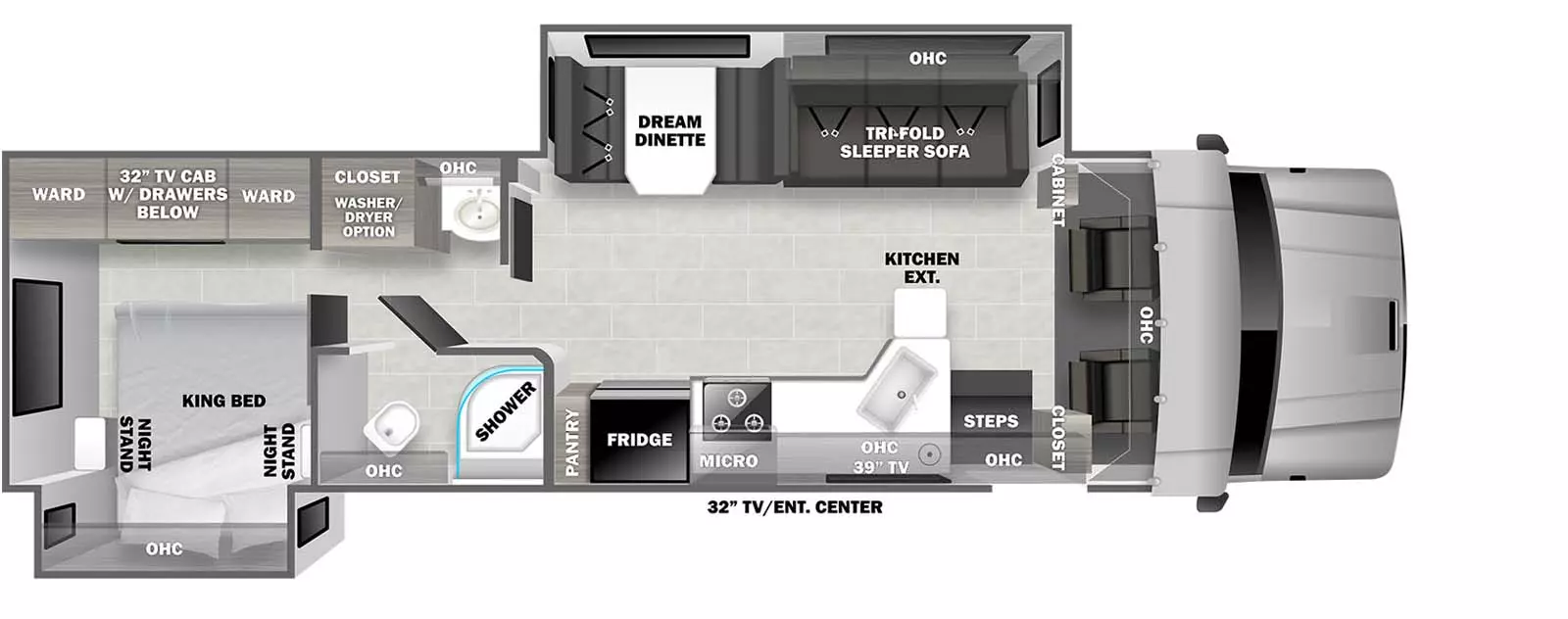

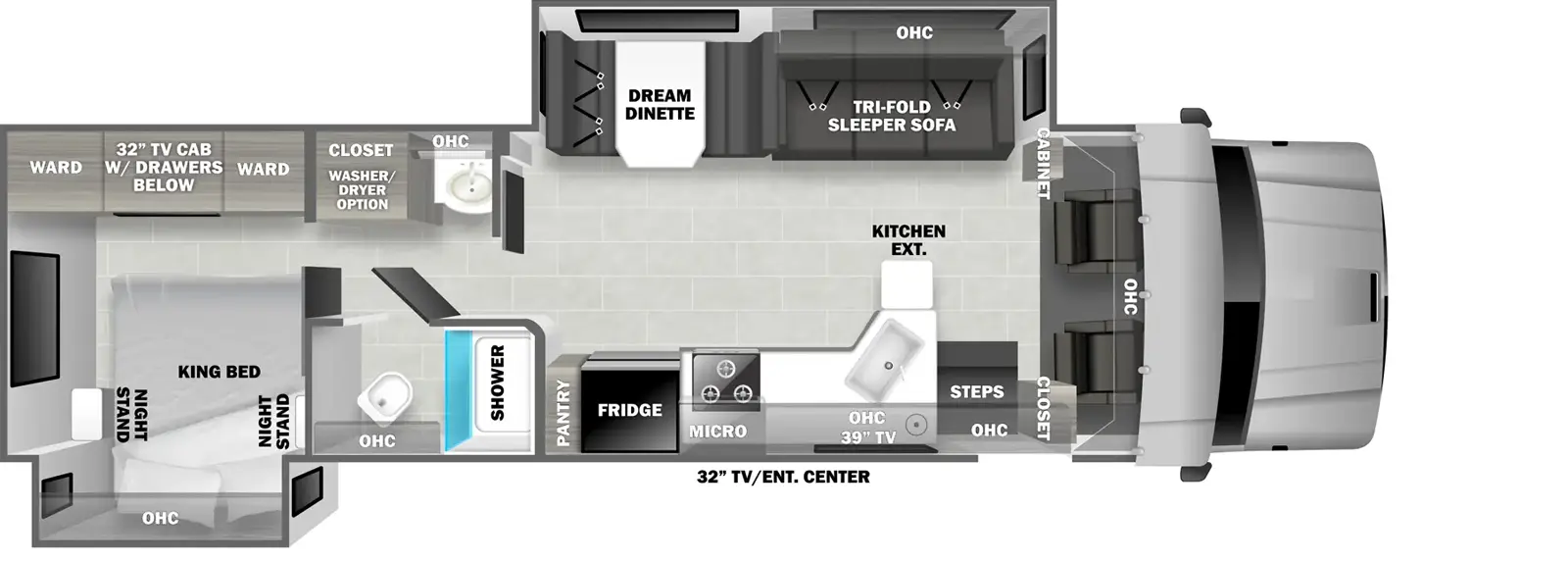

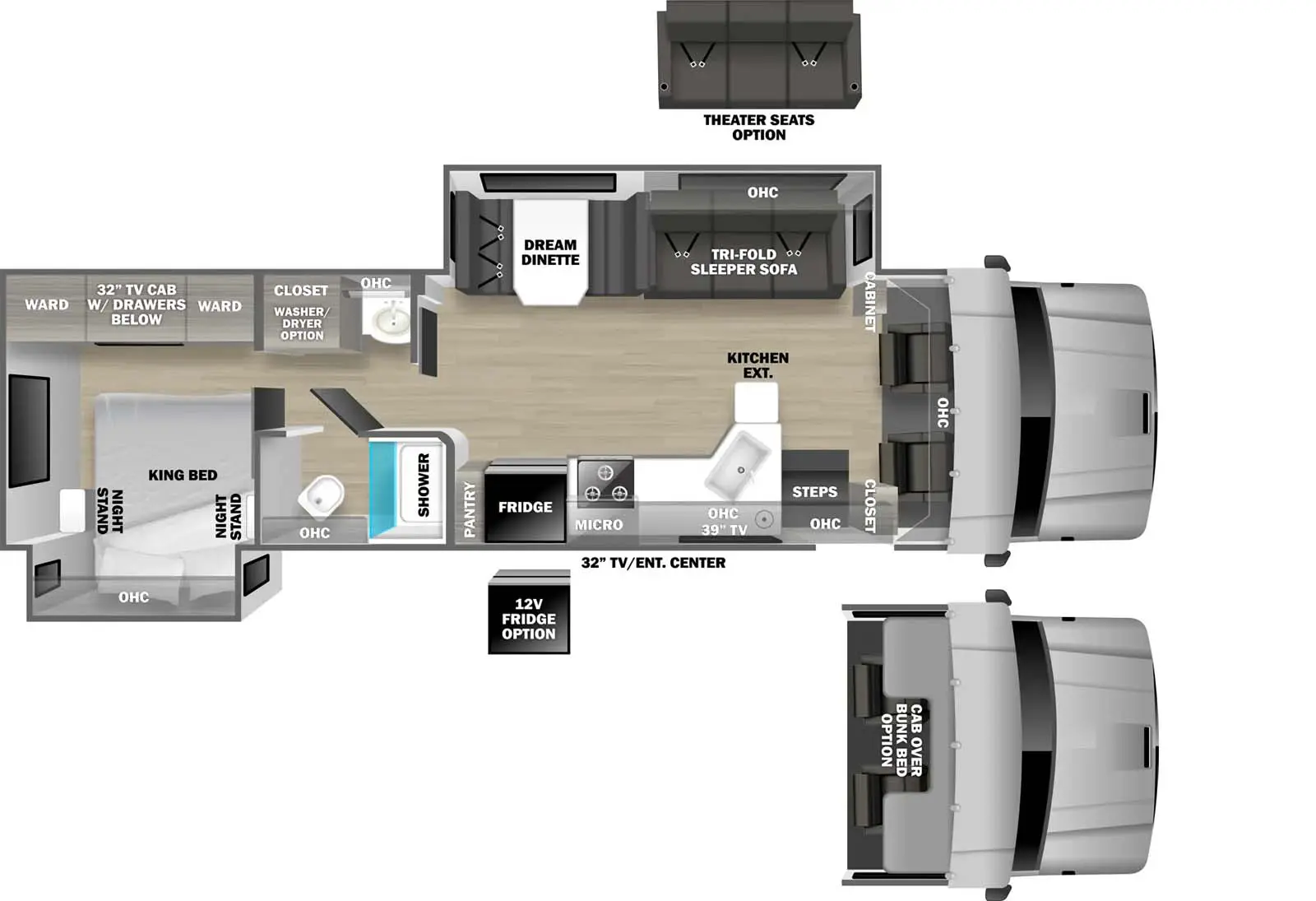

34KD
Has Gallery Photos Has 360 Tour

34KD


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

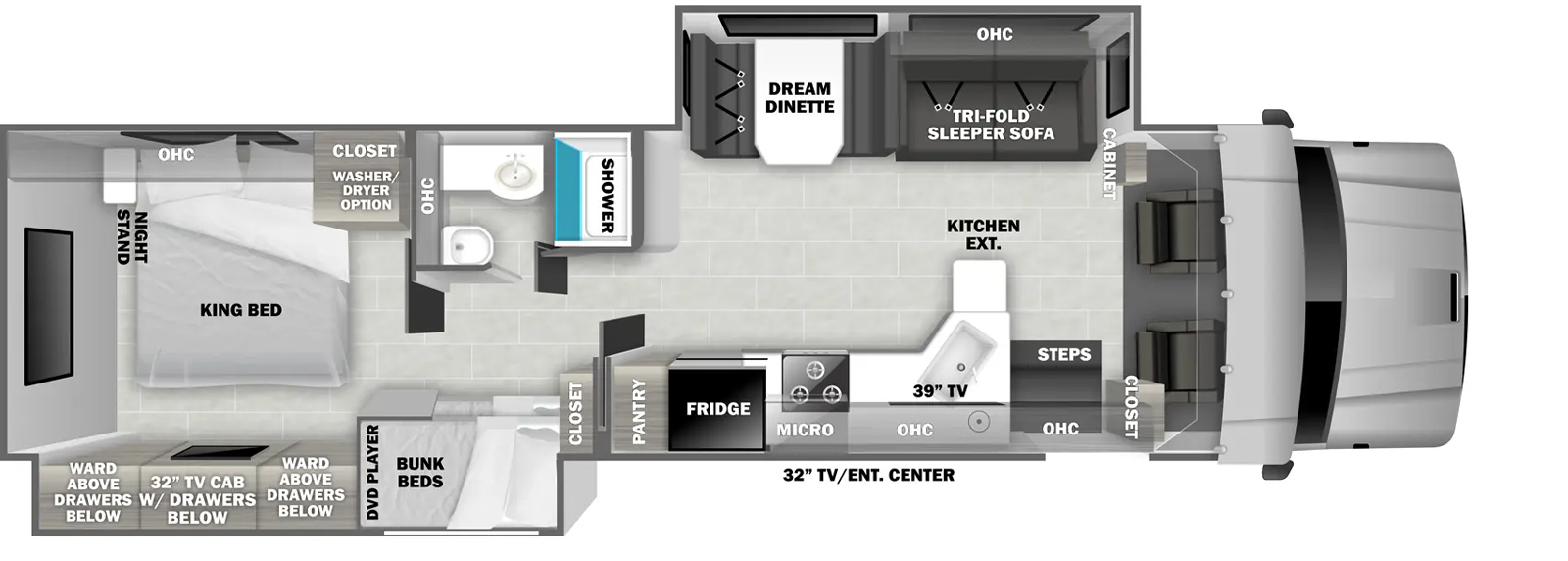

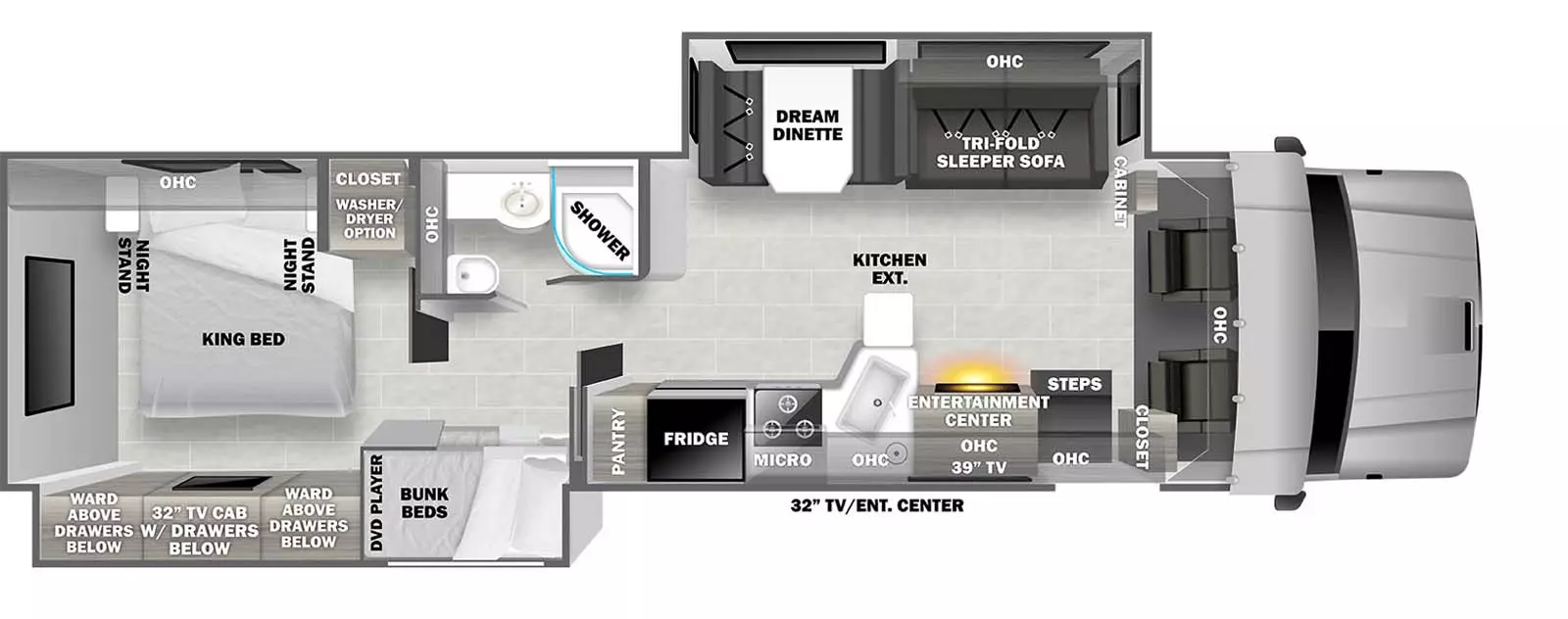

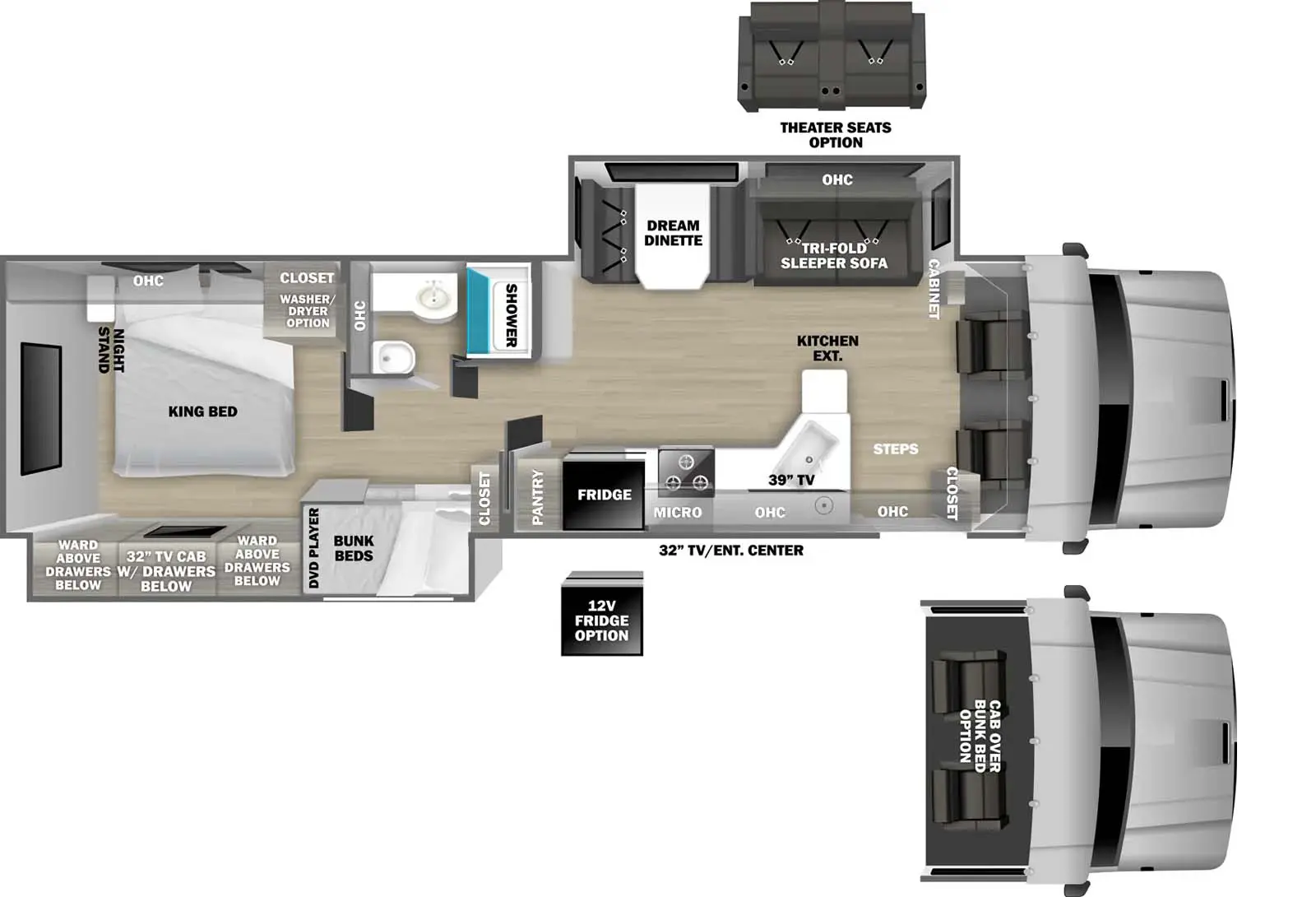

37BD

37BD


New Floorplan
 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

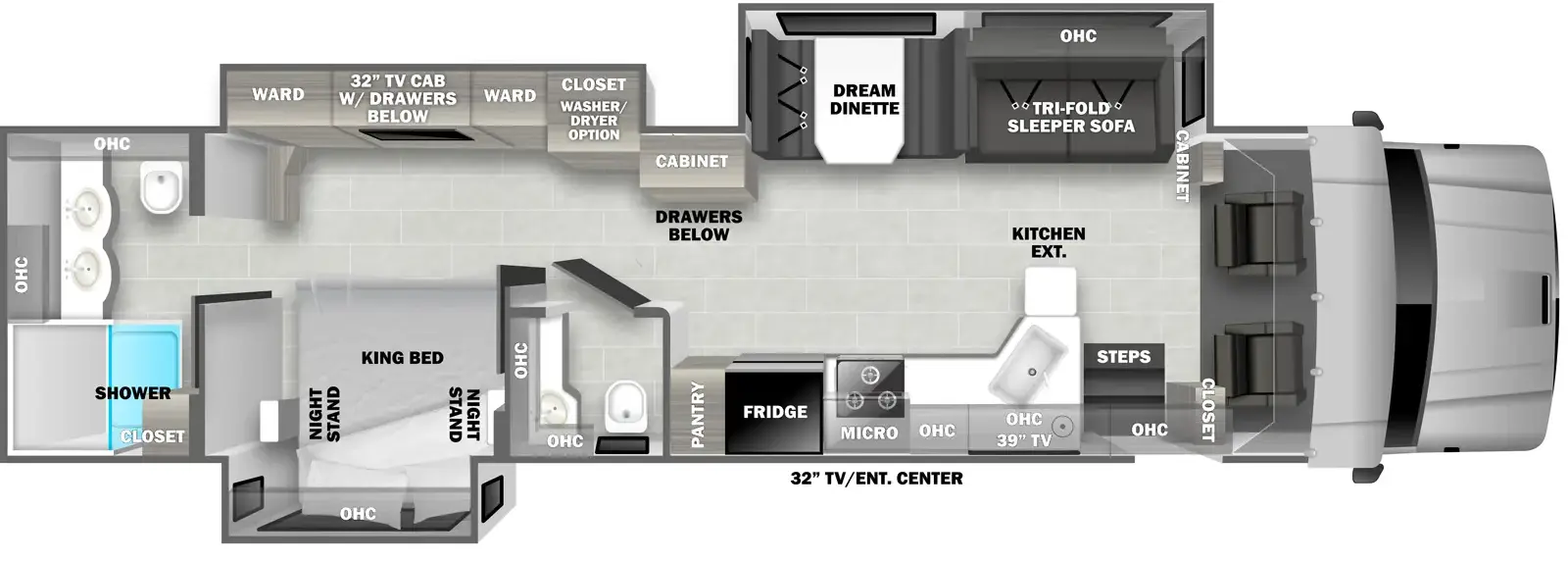

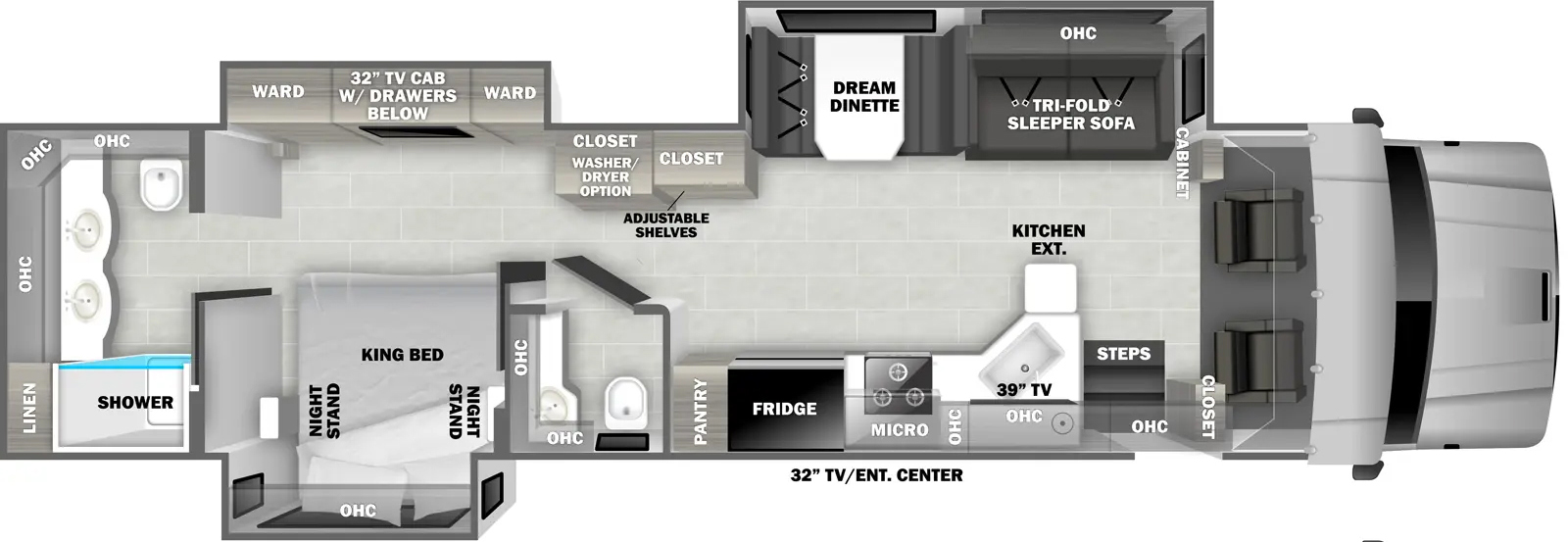

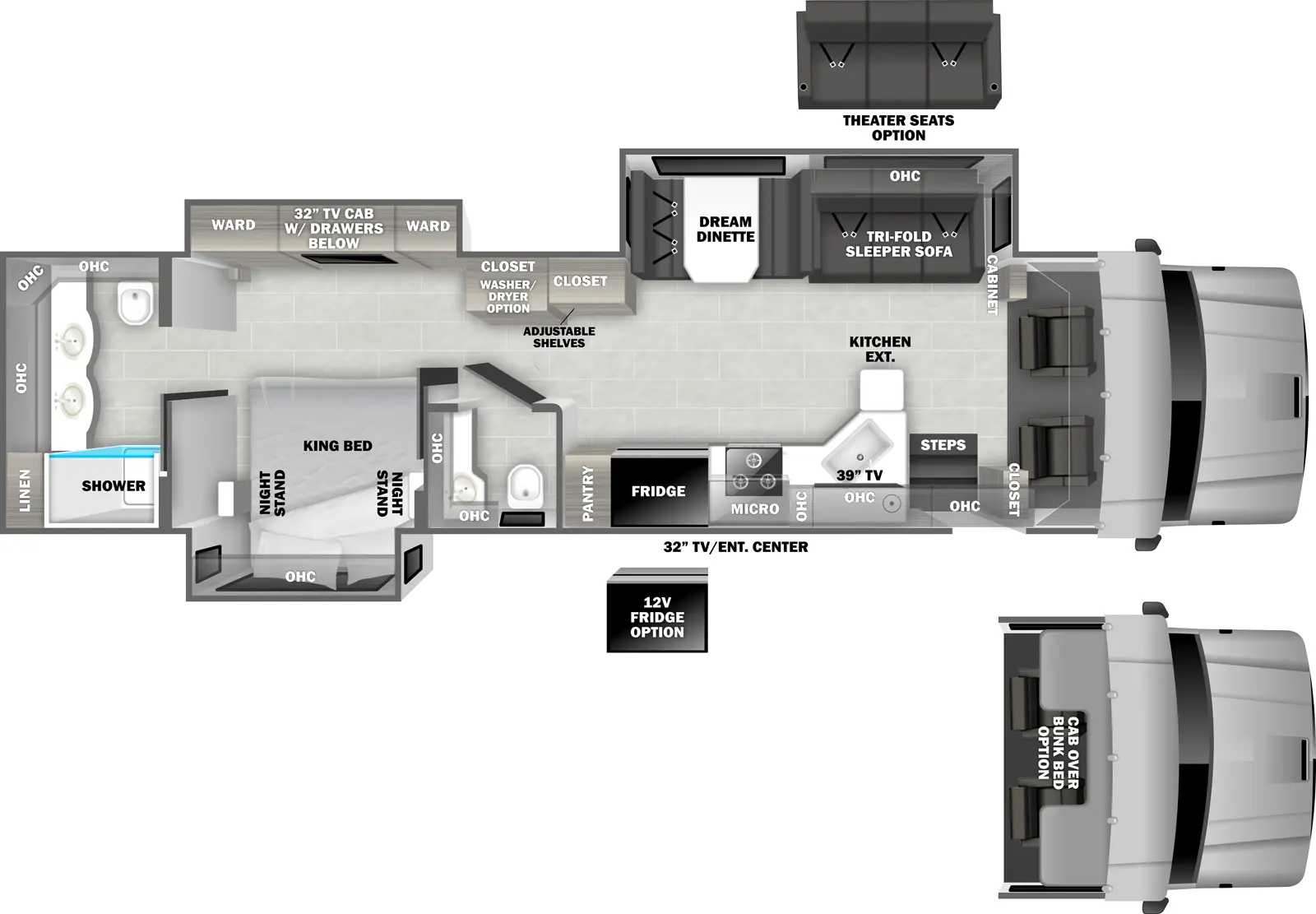

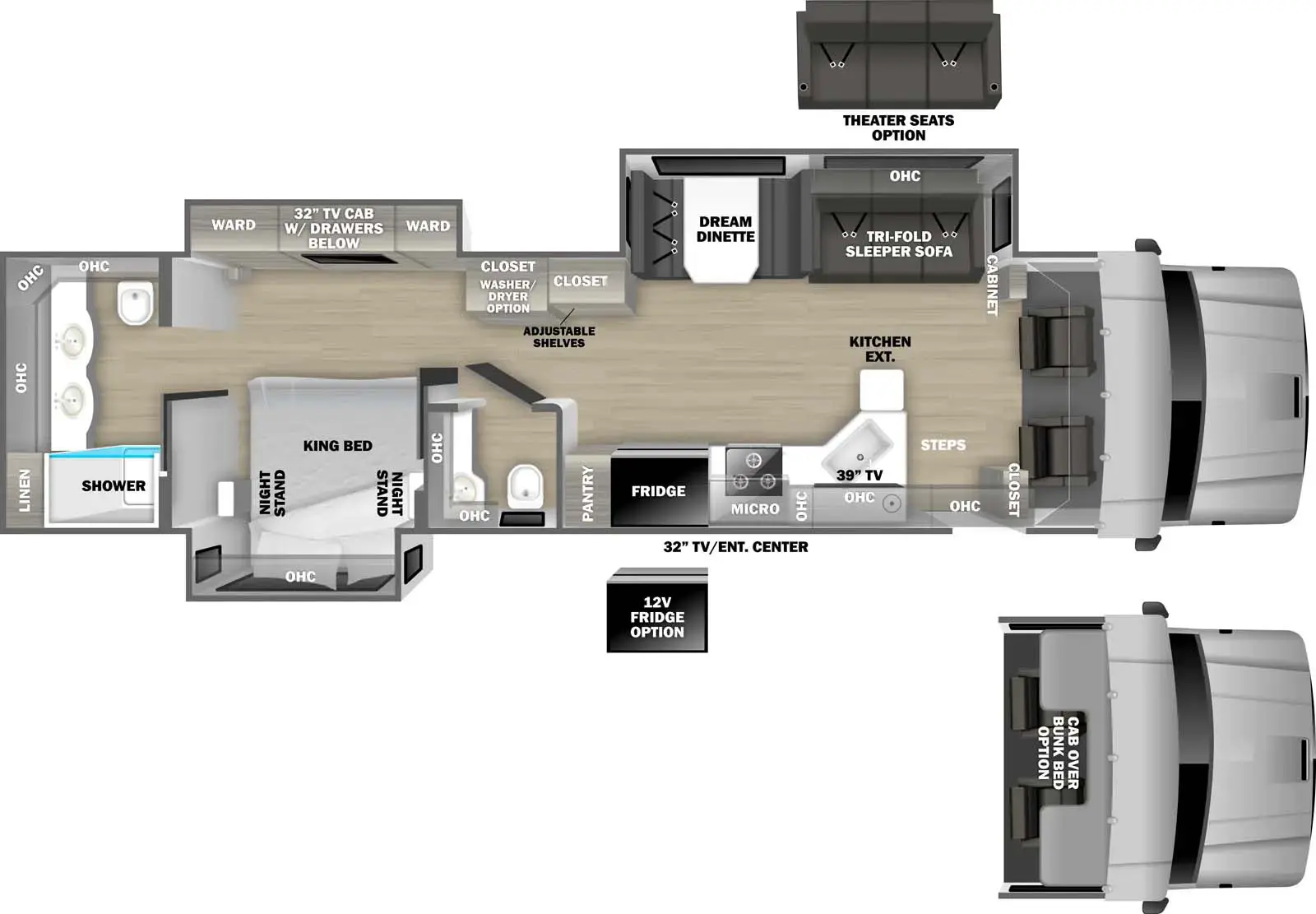

37RB
Has Gallery Photos Has 360 Tour

37RB


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

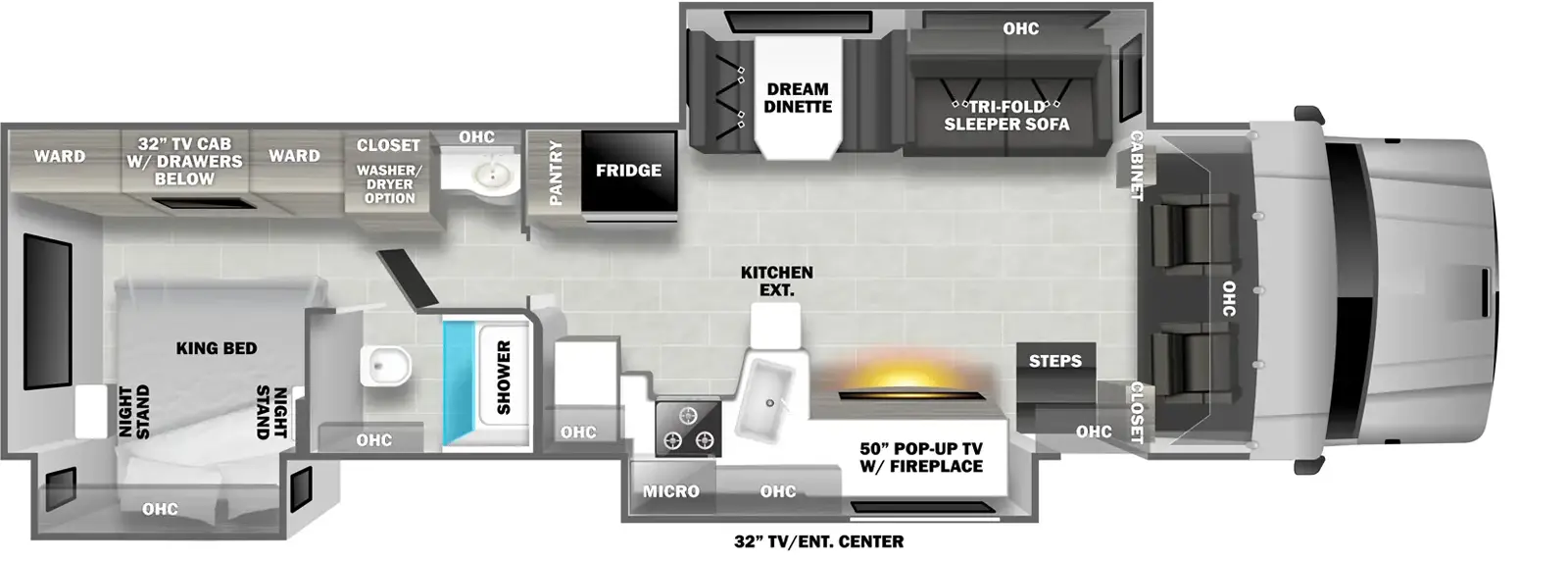

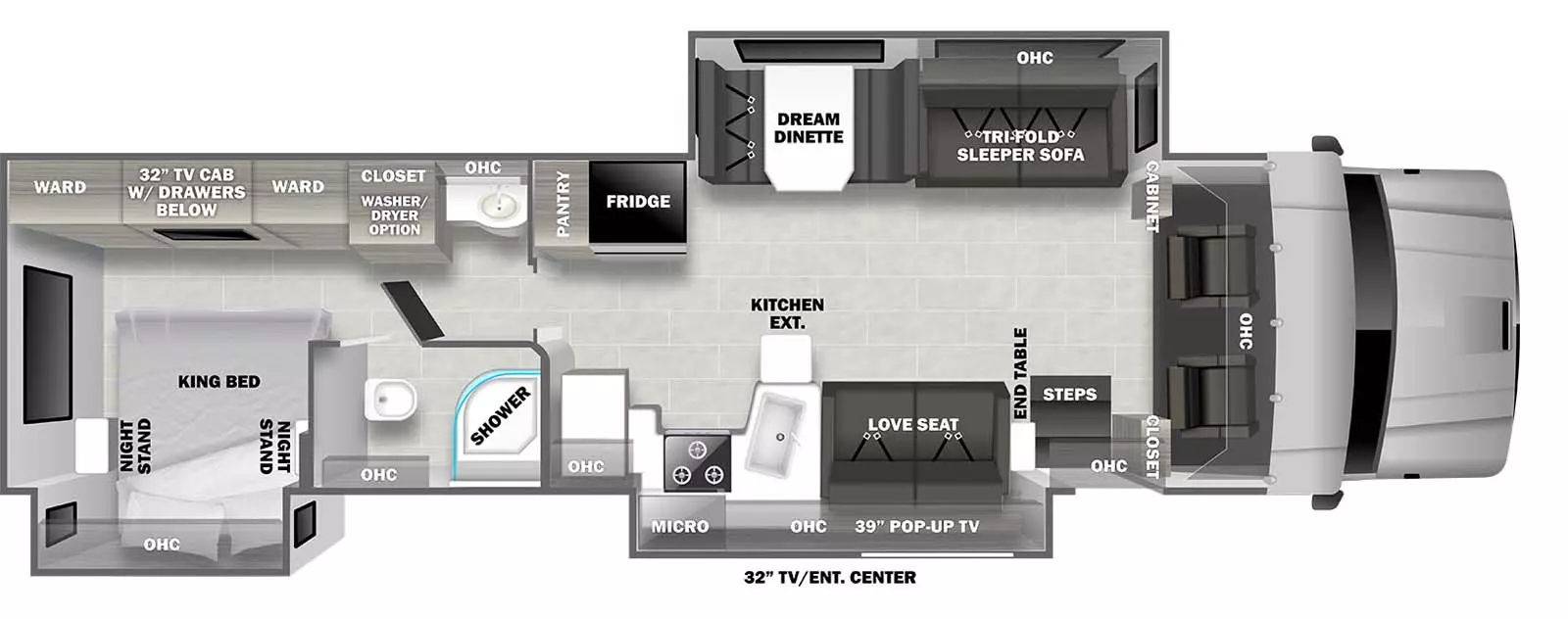

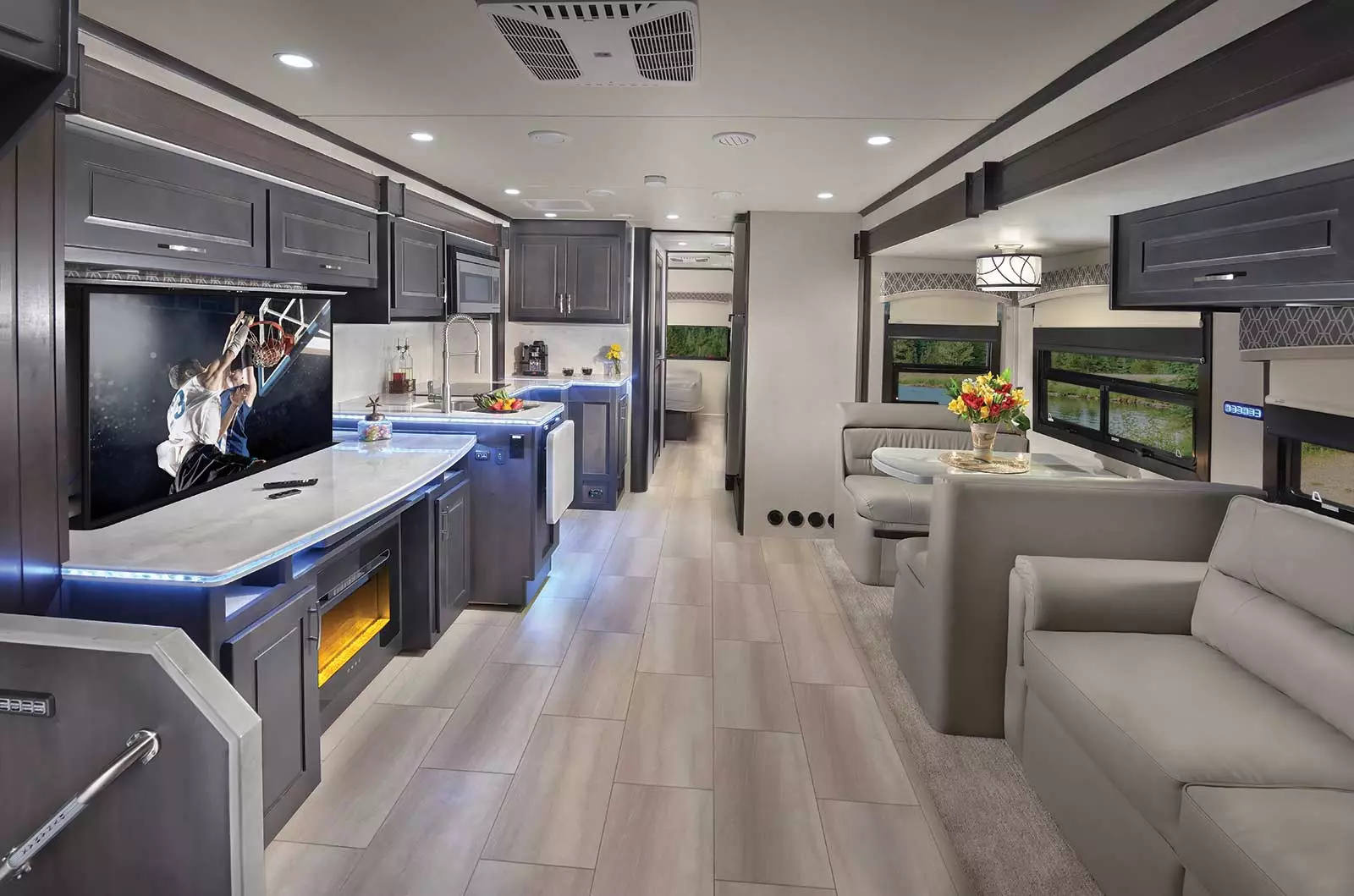

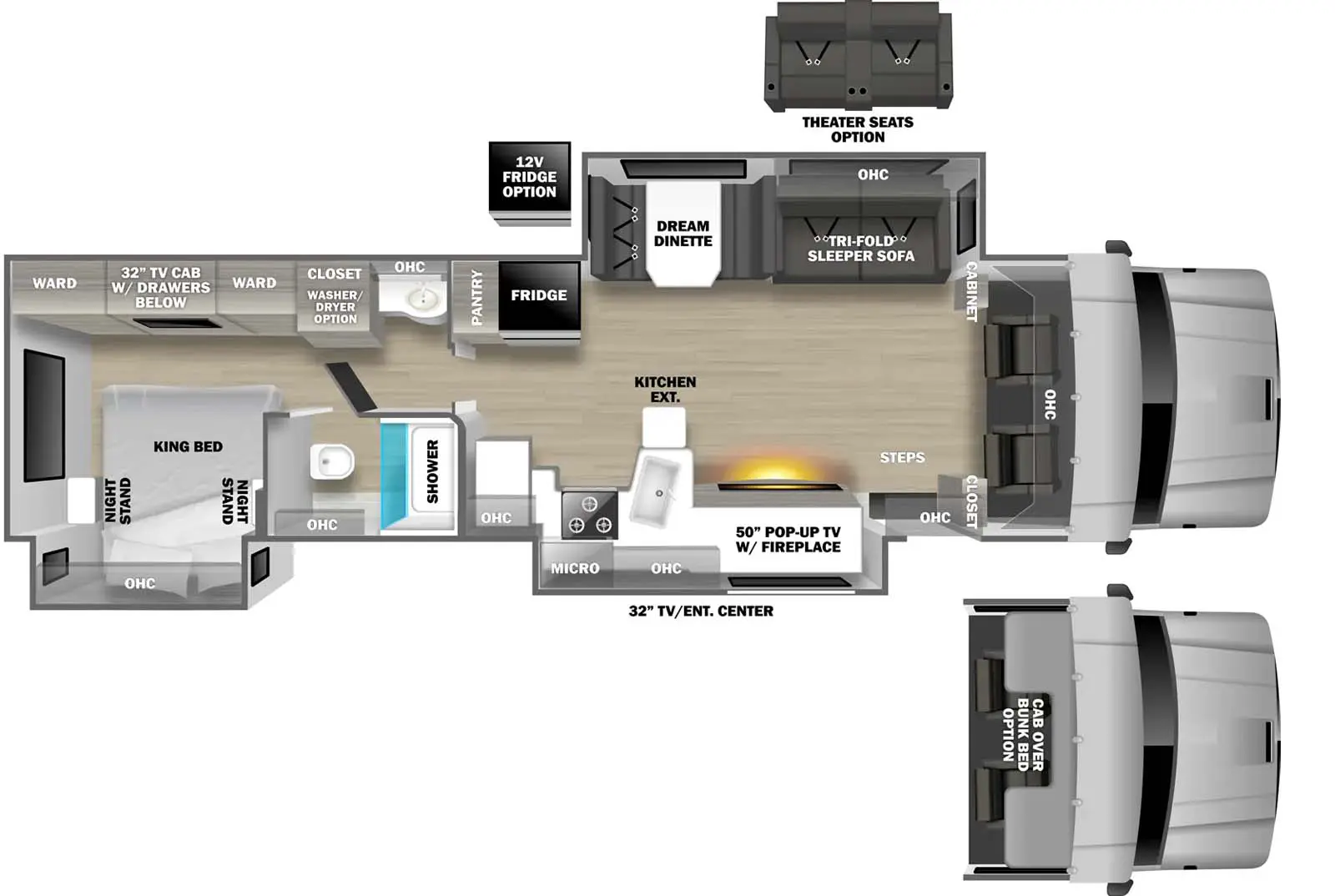

37TS
Has Gallery Photos Has 360 Tour

37TS


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

Dealer Stock Only

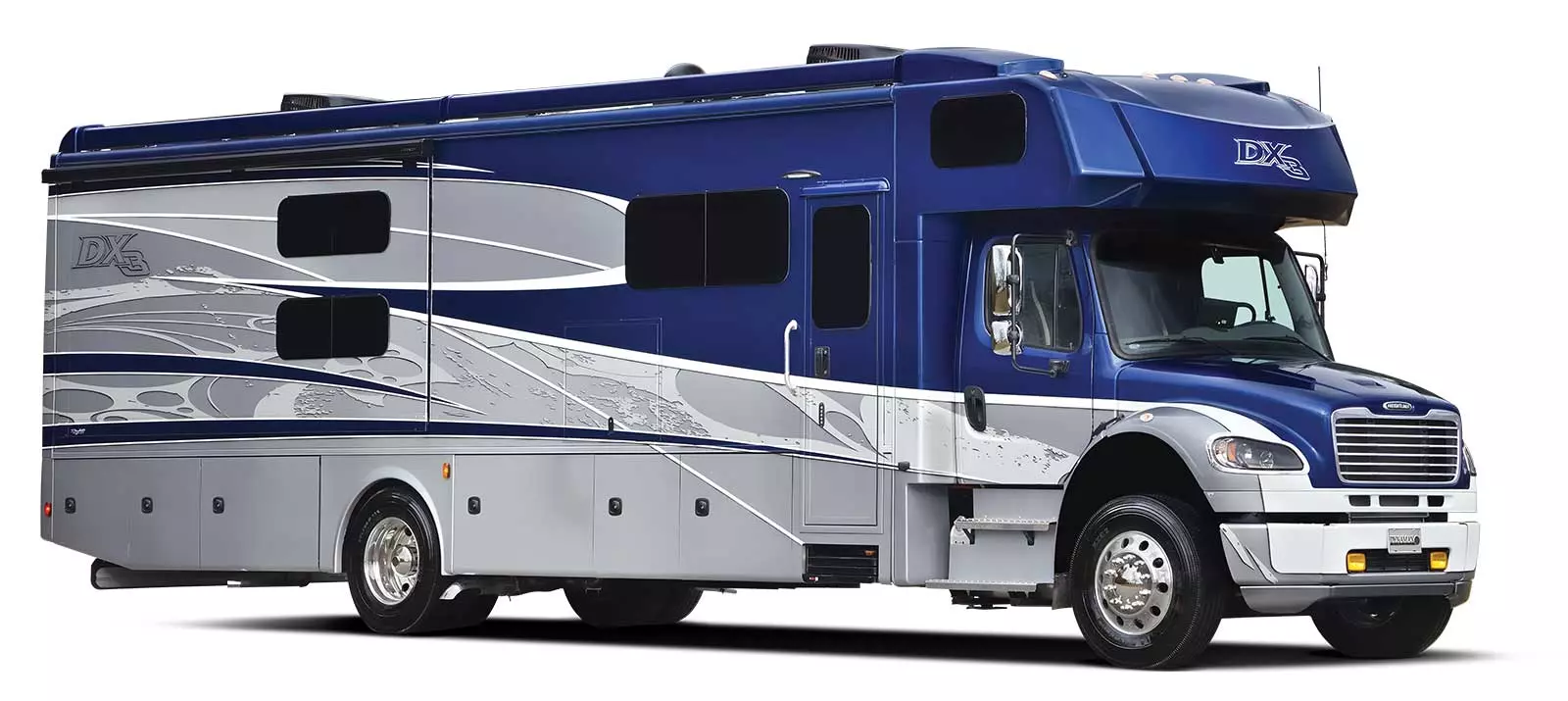

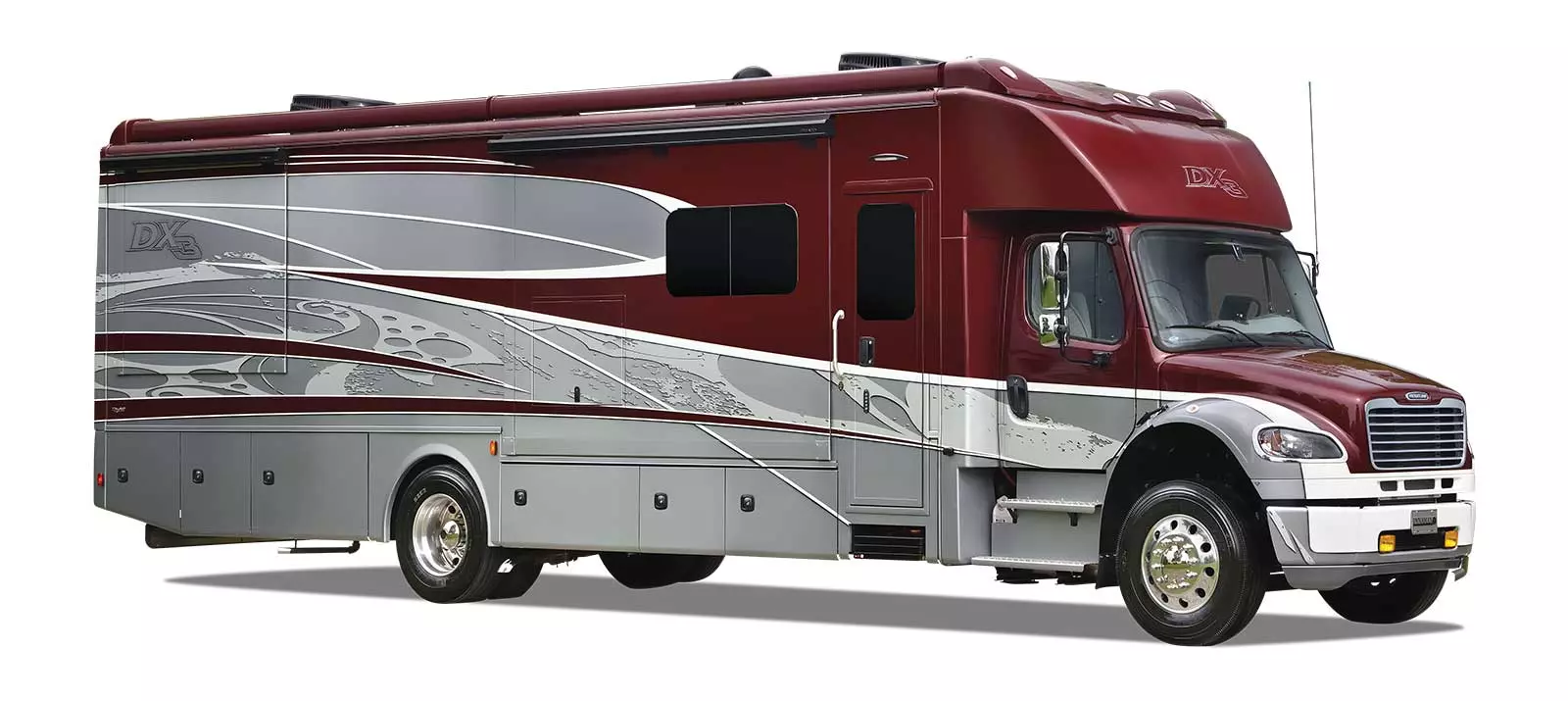

37BH
Has Gallery Photos Has 360 Tour

37BH - DSO


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
268"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
36' 8"
12' 9"
101"
94.00 gal.
52.00 gal.
52.00 gal.
18'
268"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
39' 2"
12' 9"
101"
94.00 gal.
52.00 gal.
52.00 gal.
13' 6"
286"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
40' 9"
12' 9"
101"
100.00 gal.
52.00 gal.
52.00 gal.
18'
268"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
39' 2"
12' 9"
101"
94.00 gal.
52.00 gal.
52.00 gal.
18'
268"
33000 lb.
54000 lb.
12000 lb.
21000 lb.
100 gal.
39' 2"
12' 9"
101"
94.00 gal.
52.00 gal.
52.00 gal.
13' 6"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Dynamax RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Dynamax RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Freightliner® M2 106 Chassis (33,000-lbs. GVWR/ 54,000-lbs. GCWR)
  • Detroit DD8 7.7L Turbo Diesel Engine (375 hp/1,050 lb-ft. of Torque)
  • Allison® 3200 TRV Six-Speed Automatic Transmission
  • 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
  • 6-Gallon Diesel Exhaust Fluid Tank
  • Trailer Hitch (20,000 Tow lbs./2,000 Tongue lbs.) with 7-Way Round Tow Connection
  • Weigh Safe Trailer Hitch Receiver
  • Brake Controller

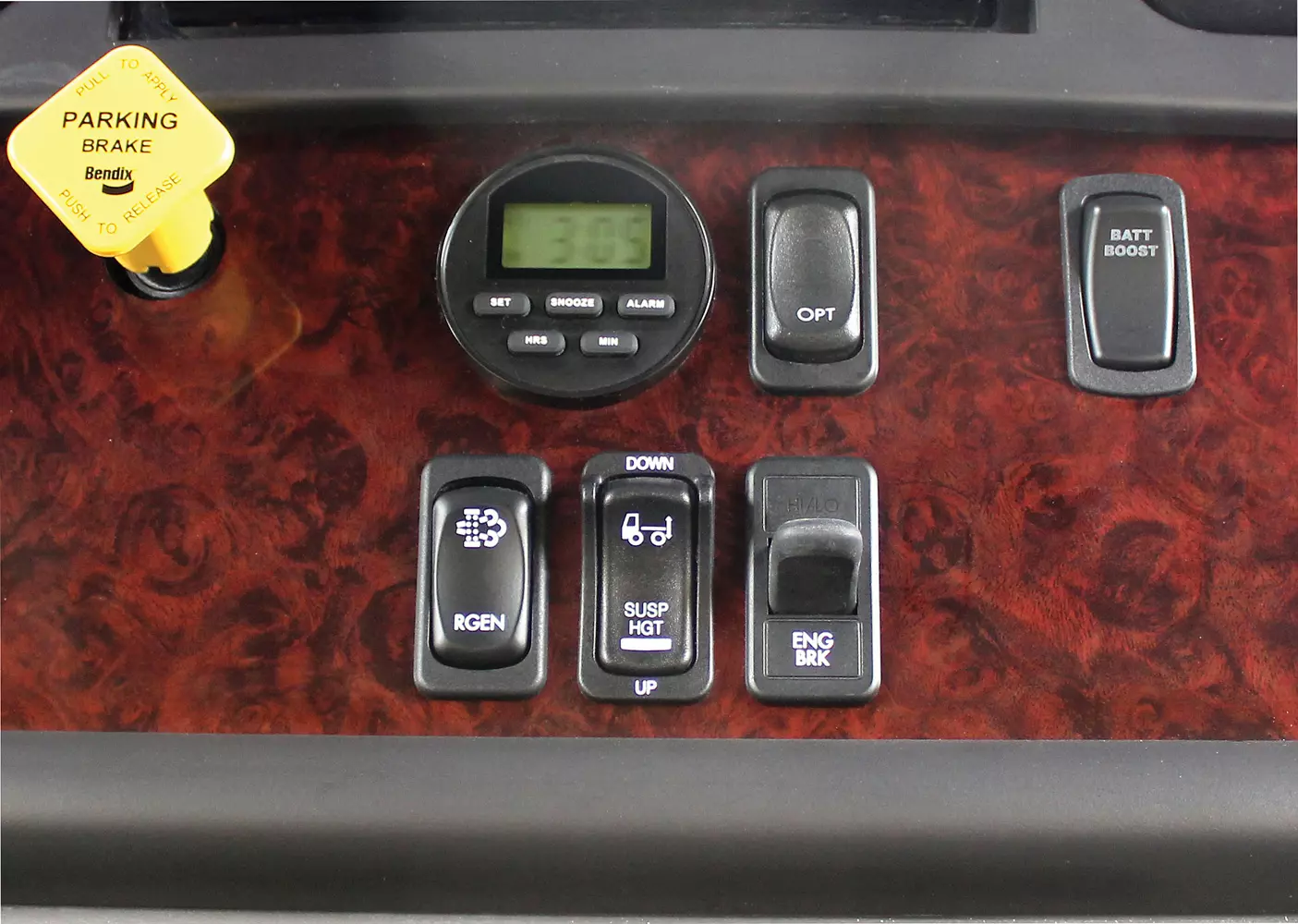

  • Dual-Stage C-Brake by Jacobs® with High/Off/Low Braking Dash Switch
  • Locking Differential
  • Airliner® 21,000-lb. Rear Suspension
  • Manual Air Suspension Dump Valve Switch on the Dash
  • 275-Amp Alternator
  • Quick Disconnect Fitting with Tire Inflation Kit
  • Air Brakes with 4-Wheel ABS
  • Bilstein® Gas-Charged Front Shock Absorbers
  • Upgraded Front Sway Bar with Clevis-Style Bushing
  • Equiflo™ Inboard Fuel System
  • (Dual Supply – Dual Return)
  • Fuel Filter/Water Separator with Primer Pump
  • Engine Block Heater
  • Steel-Reinforced, Aluminum Cab
  • Chrome Grille and Air Intake Grille
  • Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
  • Single Front Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
  • Dual Rear Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
  • Valve Extensions
  • 4.56 Rear Axle Ratio
  • Daytime Running Lights
  • LED Headlights
  • Tinted Door Glass and Operating Wing Windows
  • Chassis Battery Shut Off Switch in Cab
  • Leatherette Driver and Passenger Air Ride Seats with Swivel Bases
  • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
  • Kenwood® 7” Touch Screen Dash Infotainment
  • System with AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), and Apple® CarPlay™/Android® Auto™ Functionality
  • Air Horn
  • 12V Accessory Ports
  • One Valve Parking Brake System with Warning Indicator
  • Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Marker Lights with Separate Interrupter Switch
  • Low Air Pressure Light and Buzzer
  • Cruise Control
  • Adjustable Steering Column
  • 18” Leather-Wrapped Steering Wheel
  • Hydrographic Woodgrain Cab Accents
  • Power and Heated Exterior Mirrors
  • Power Windows and Locks
  • 3-Point Seat Belts
  • Dual Reading Lights
  • Two (2) Cup Holders in Dash
  • 2” Aluminum-Framed, Laminated Sidewalls with Dow® Block Foam Insulation
  • Gel-Coat Fiberglass Walls with Azdel® Backing
  • Aluminum-Framed Floor
  • Aluminum-Framed Roof Trusses

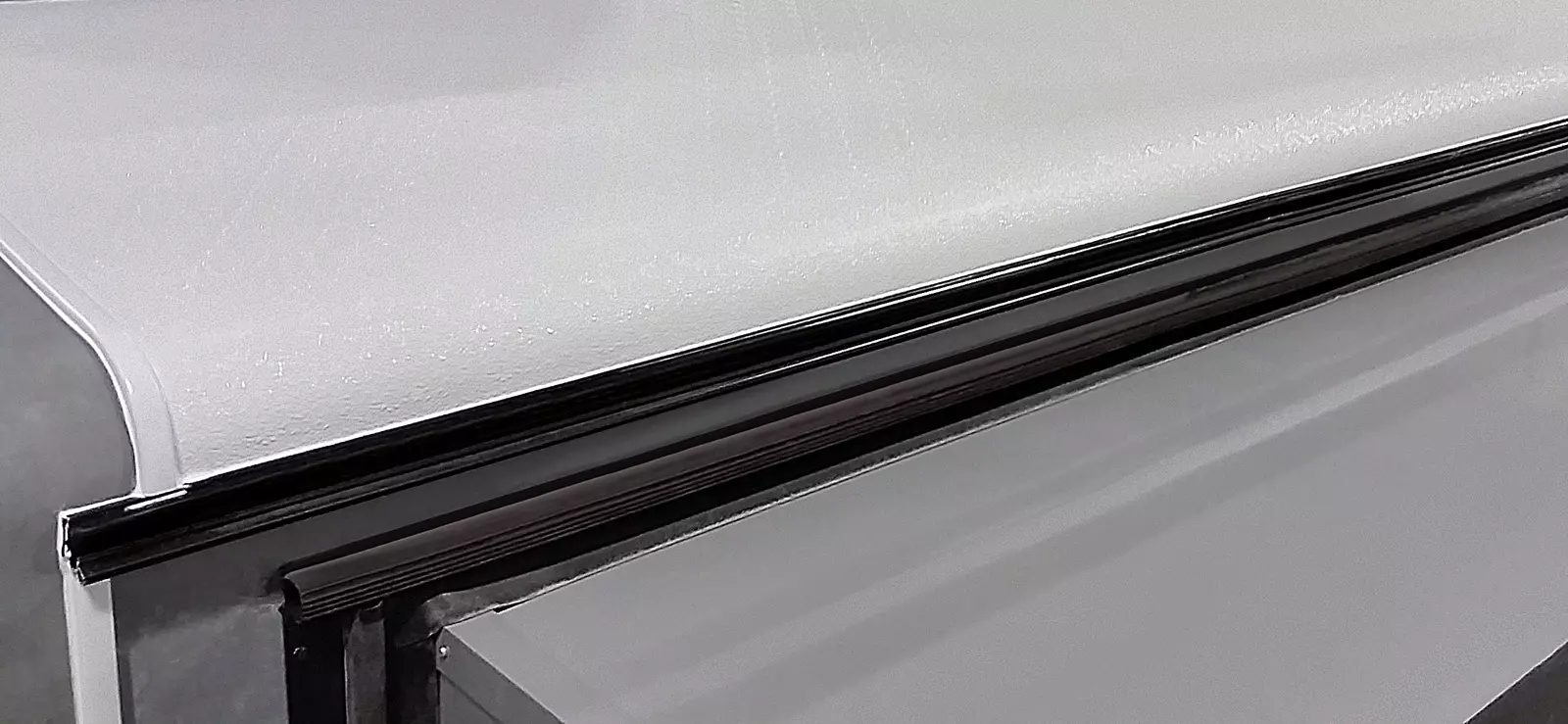

  • Crowned, One-Piece Fiberglass Roof
  • Foil-Lined Ductwork Throughout
  • Fiberglass Front Cap, Rear Cap, and Front Wing Panels
  • Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth
  • Dual-Pane, Dark-Tinted, Frameless Windows
  • Seamless Rotocast Storage Compartments with LED Lighting
  • Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches

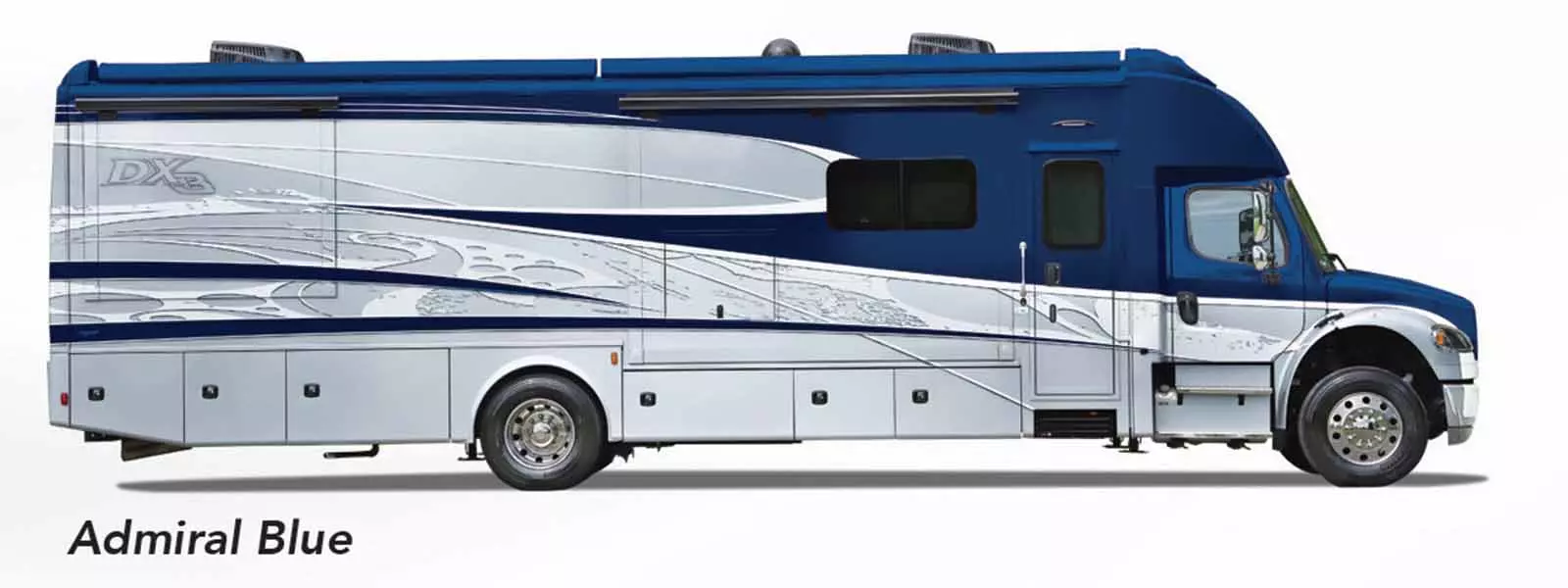

  • Custom Full Body Paint Package
  • Premium Cut and Buffed Paint Finish
  • Front-End Diamond Shield® Paint Protection

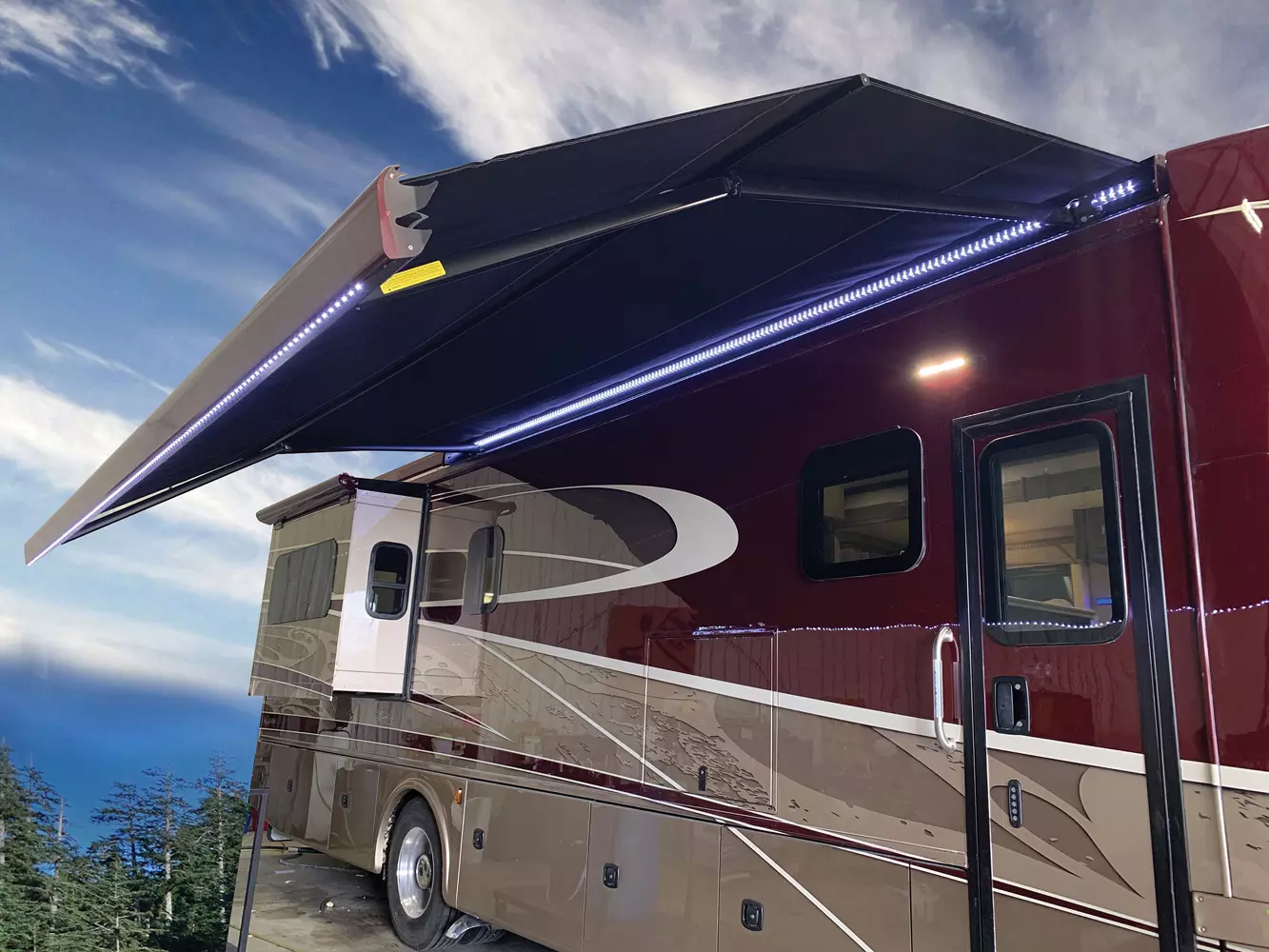

  • Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor
  • Aluminum-Wrapped Slideout Toppers
  • LED Patio Light
  • Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
  • Keyless Entry Touch Pad at Entry Door
  • Lighted Acrylic Entry Grab Handle
  • Power Entry Steps
  • Exterior Wall-Mounted Entertainment Center with 32” LED Smart TV
  • Front and Rear LED Clearance and Marker Lighting
  • Rear LED Docking Lights
  • Polished Stainless Steel Cab Step Treads
  • Chrome Exhaust Tip
  • Rigid Core LV Tile with Soft Silence Acoustical Pad
  • Deluxe Carpet with Pad in Select Living Area Slide Rooms
  • Rigid Core LV Tile Entry with Non-Skid Rubber Steps
  • Soft-Touch Padded Vinyl Ceiling
  • LED Recessed Ceiling Lights
  • Sprung, Residential Style Dinette Seats with Lift Up Storage
  • Tri-Fold Sofa (37BD, 37TS, 37RB)
  • L-Shaped Sofa (34KD)
  • Coordinating Fabric Window Treatments and Lambrequins
  • Day/Night Roller Shades
  • Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
  • Hardwood Shaker-Style Passage Doors
  • Full Extension, Soft-Closing Drawer Guides (where applicable)
  • Hidden Hinges
  • 39” LED Smart TV (Living Area 34KD, 37RB, 37TS)
  • Entertainment Center with 39” LED Smart TV and Fireplace (37BD)
  • Sound Bar
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports
  • 18 cu. ft. Residential Refrigerator with Ice Maker (N/A – 37RB)
  • 23 cu. ft. Residential Refrigerator with Ice Maker (37RB)
  • Sealed Gas Range with Glass Cover
  • Convection Microwave Oven
  • Solid Surface Countertops with Hand-Laid Tile Backsplash
  • Double-Bowl Stainless Steel Sink with Solid Surface Cover
  • Residential Stainless Steel Spring Gooseneck Faucet
  • Under-Cabinet Lighting
  • MaxxAir® Power Vent with Built-In Rain Cover
  • King Bed with Gel-Infused Memory Foam Mattress (72” x 80” – Nominal Size)
  • Under-Bed Storage (Floor Plan Specific)
  • Deluxe Padded Headboard
  • Designer Bedding Package
  • 32” LED Smart TV with Sound Bar
  • Cedar-Lined Wardrobe
  • Nightstands with Solid Surface Countertops
  • LED Reading Lights
  • USB Charging Ports
  • Bunk Bed Mattresses (28” x 76”) and Privacy Partition (37BD)
  • Two Bunk CD/DVD Players with Monitors (37BD)
  • Granite-Textured Fiberglass Shower
  • Shower Skylight
  • Glass Shower Door
  • Oxygenics Body Spa® RV Shower Head
  • Solid Surface Countertop with Hand-Laid Tile Backsplash
  • Under-Mount Sink with Residential Brushed Nickel Faucet
  • Porcelain Foot-Flush Toilet (N/A – 37RB)
  • Porcelain Electronic-Flush Macerator Toilets (37RB)
  • MaxxAir® Power Vent with Built-In Rain Cover

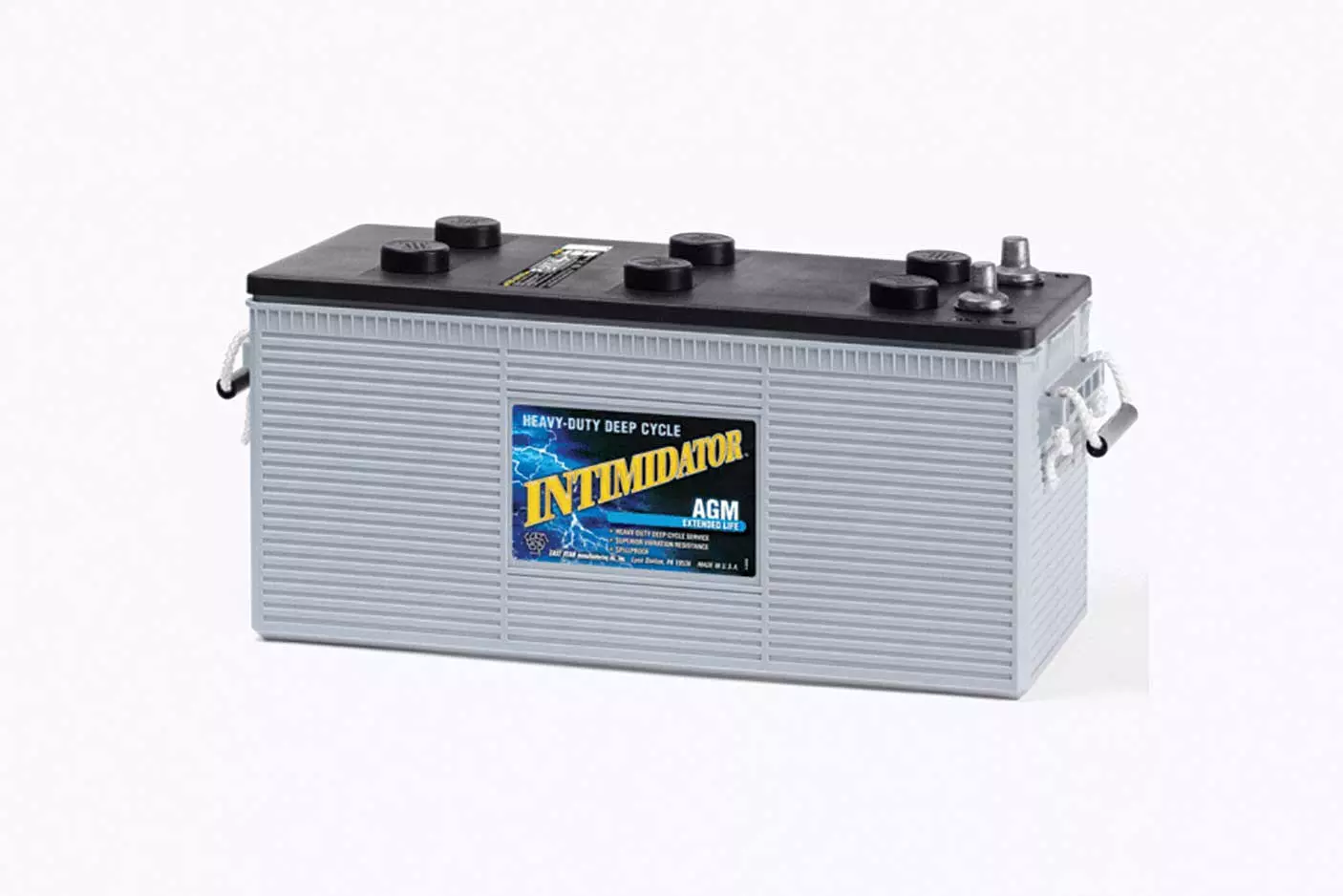

  • Dual 12V Group 4D AGM Auxiliary Batteries
  • Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
  • Battery Disconnect
  • 50-Amp Service with Power Cord Reel
  • 2,800W Pure Sine Wave Inverter/Charger (3,900 Peak Watts)

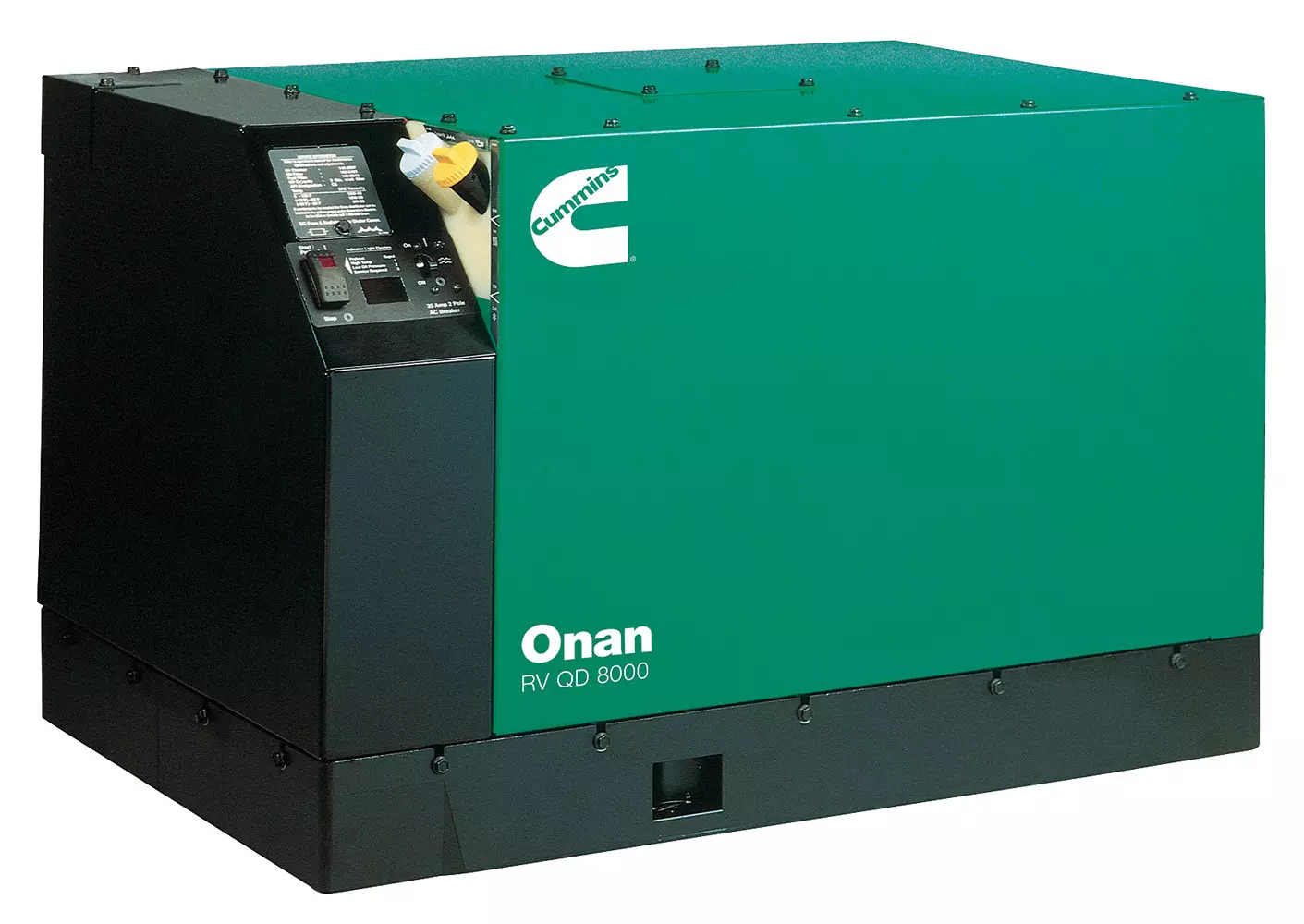

  • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
  • Automatic Generator Start
  • Dual, Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Strip

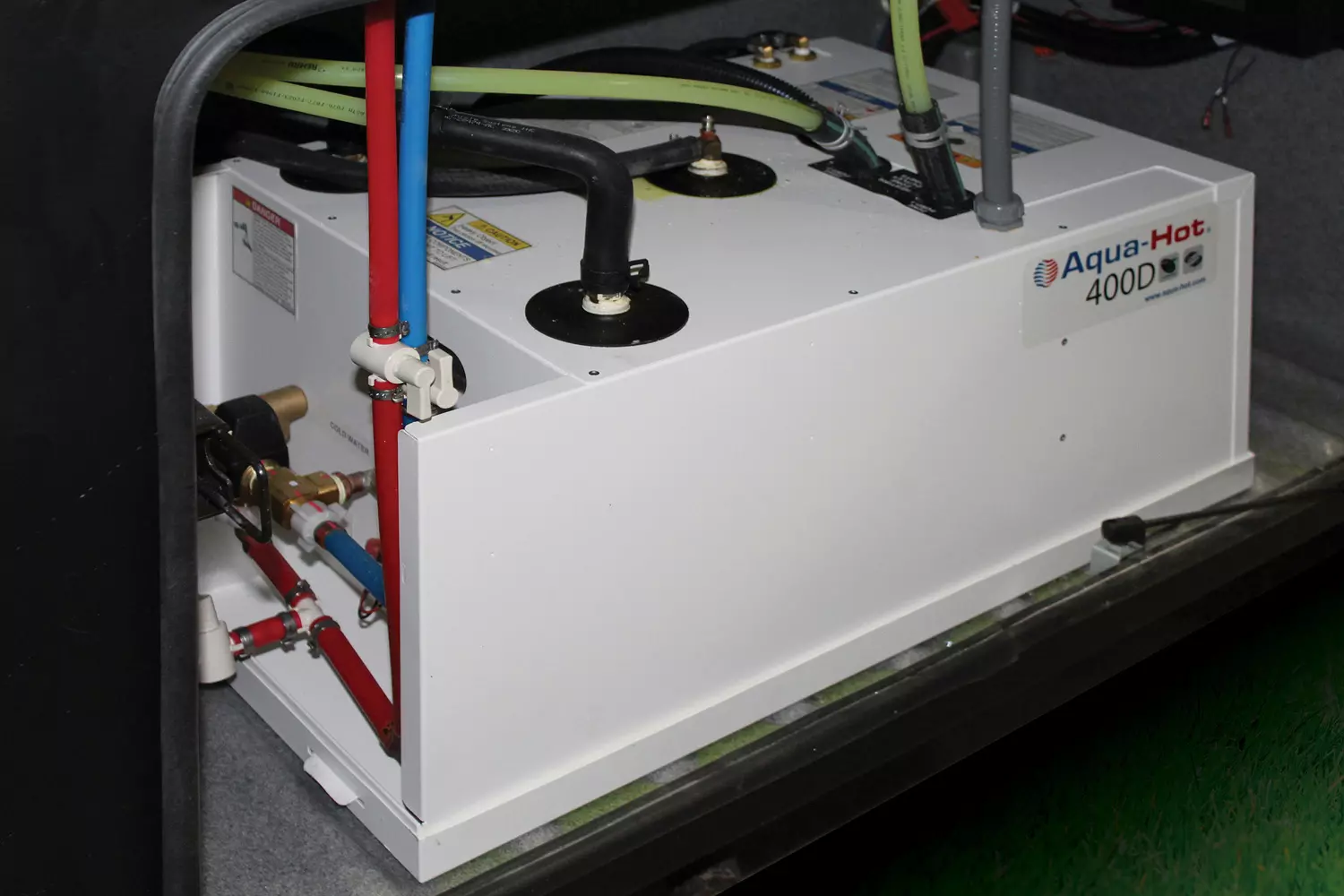

  • Aqua-Hot® 400D Diesel System
  • 20.3-Gallon LP Tank (WC)
  • LP Quick Connect
  • Water Filtration System
  • Exterior Shower in Service Bay
  • Power Water Hose Reel in Service Bay
  • Exterior GFCI Receptacle
  • 4x4 HDMI Matrix
  • Cable TV/Satellite Hookup in Service Bay
  • Thetford® Sani-Con Turbo Macerator System
  • Black Tank Flush
  • Utility Compartment Heated by Aqua-Hot® System
  • Enclosed Holding Tanks Heated by Aqua-Hot® System
  • Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
  • Upgraded 12V On-Demand Water Pump (4 gallons per minute)
  • Carbon-Monoxide, LP Gas, and Smoke Detectors
  • Fire Extinguisher

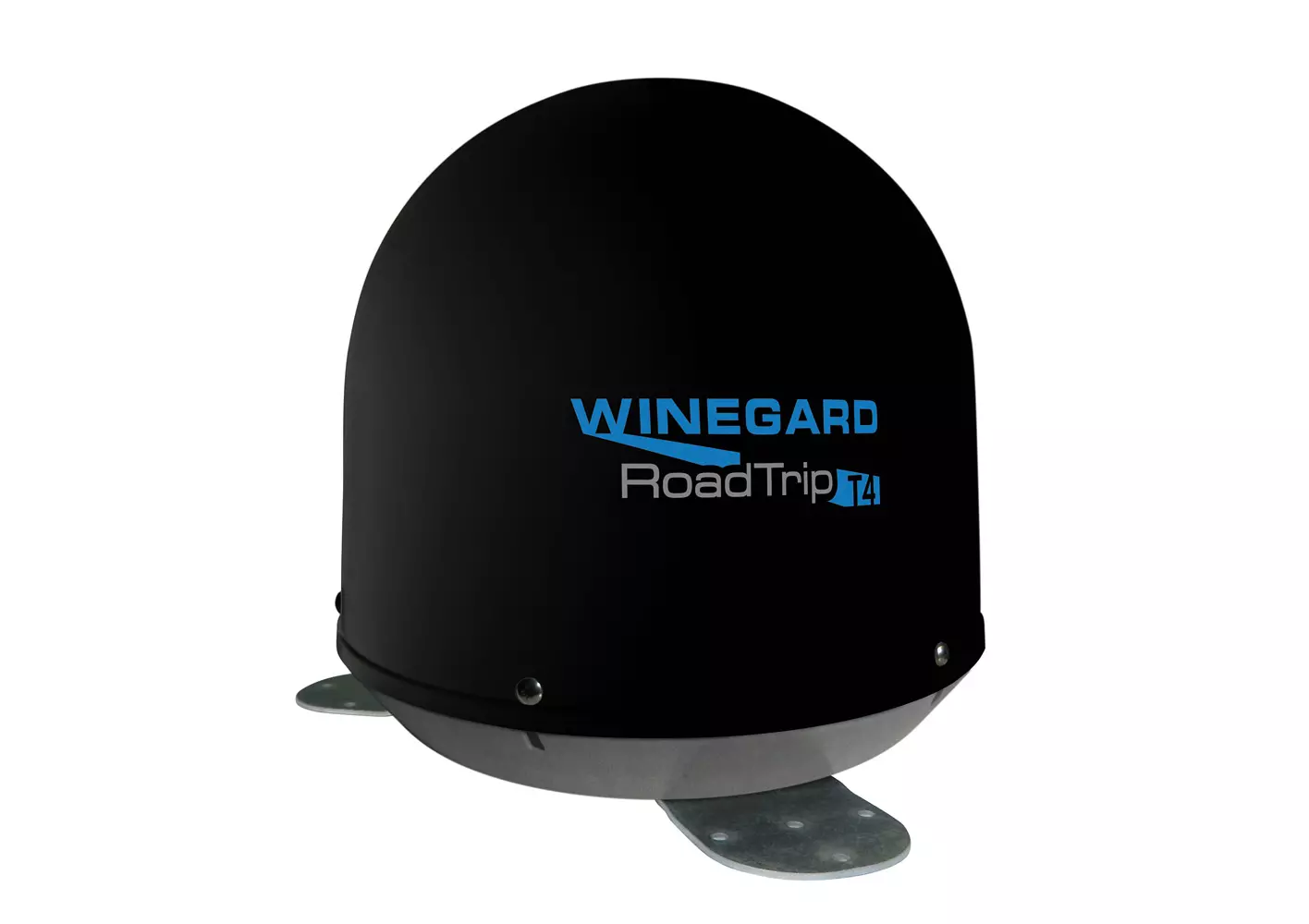

  • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
  • Solar Panels - Two 100 Watt with 30-Amp Controller
  • Cab-Over Bed (Extended Front Cap)
  • Rear “DYNAMAX” Rock Guard

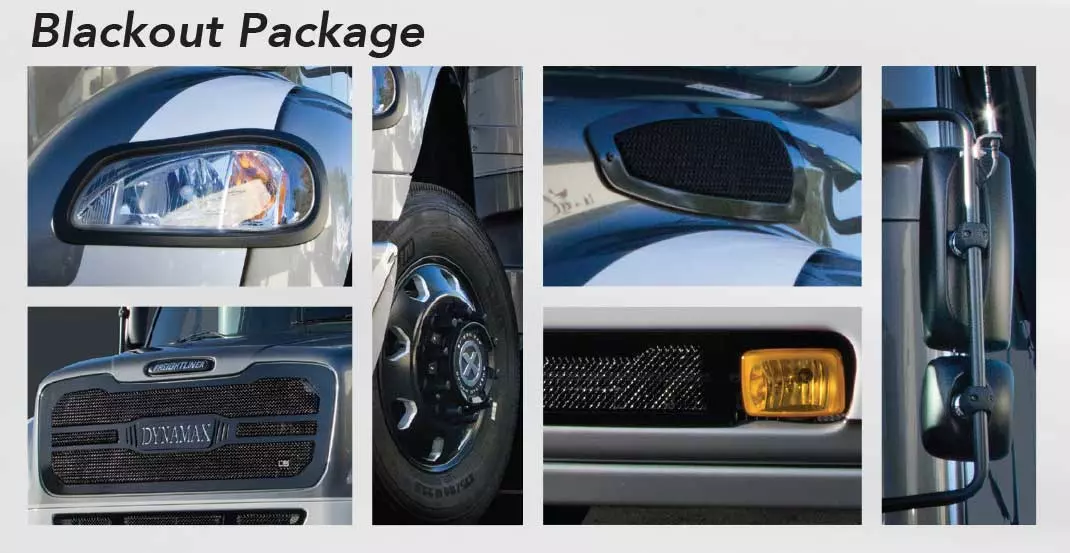

  • Black Out Package (Side Mirrors, Rock Guard, Wheels, Headlight Bezels, Exterior Grab Handle Trim, Custom Grill and Vent)

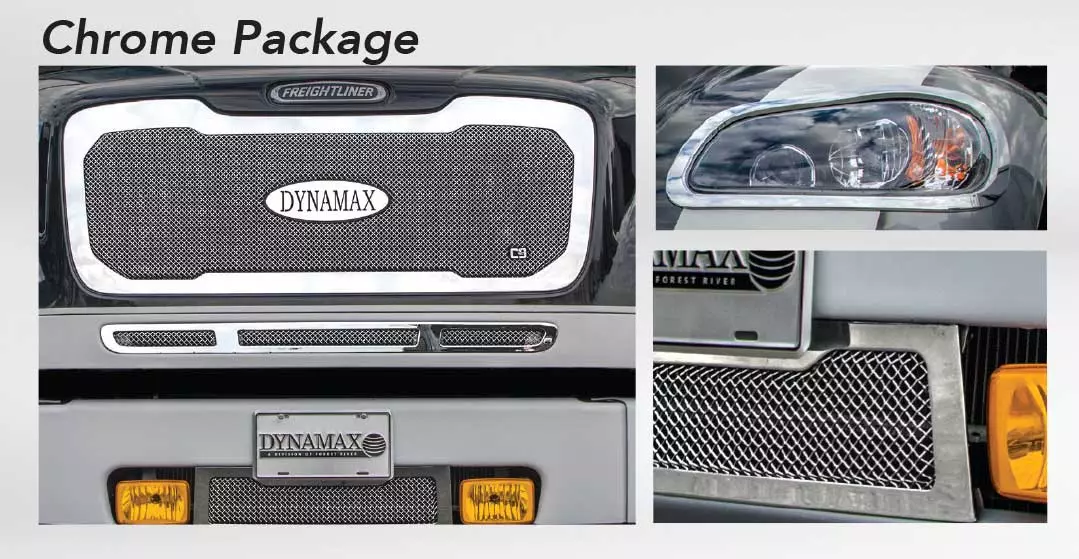

  • Chrome Appearance Package (Custom Grill and Vent, Dual Chrome Air Horns, Rock Guard, and Baggage Door Handles)
  • 12 cu. ft. 2-Way Refrigerator with Ice Maker in place of Standard Refrigerator and Side Pantry
  • Washer/Dryer

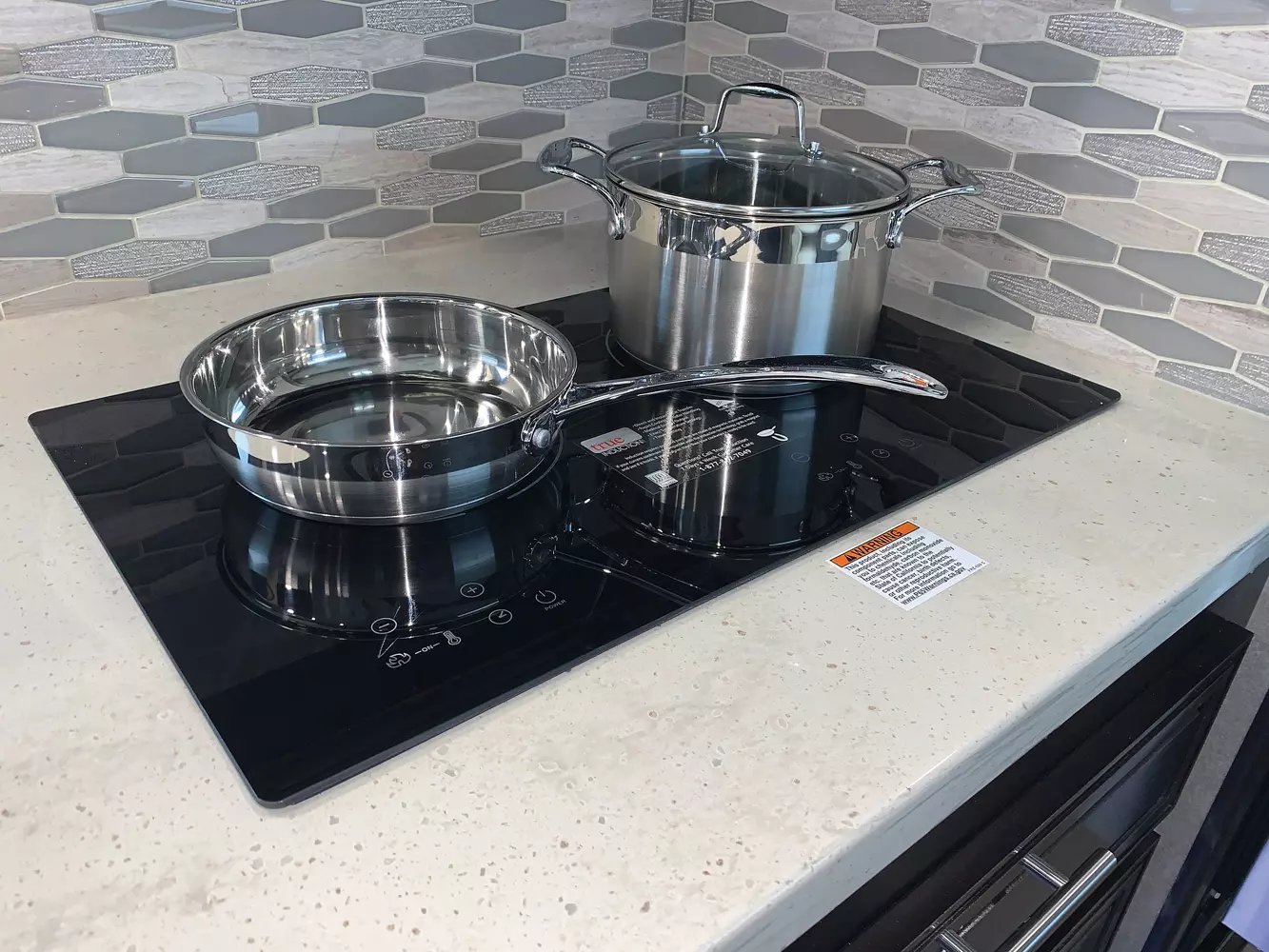

  • All-Electric Package: Induction Range with Induction Pan Set and Exterior Storage Compartment in Place of LP Tank
  • Tri-Fold Sofa (34KD)
  • Dual, Power Reclining Theater Seats in Place of Dinette (34KD: Three Seats - Only Outer Seats are Powered)
  • Entertainment Center with 50” LED Smart TV and Fireplace in Place of Loveseat and Cab-Over TV (37TS Only)
  • Innomax® Adjustable Comfort, Digital Smart Bed
  • Winegard® Trav’ler Stationary Triple LNB Satellite Dish (DirecTV® SD-HD)
  • JBL® Premium Cab Sound System - JBL full range/tweeter coaxial speakers, dual voice coil subwoofer, and a high-efficiency, high-performing, 4-channel DSP amplifier, all “Tuned” specifically for t
  • Mobileye® Collision Avoidance System
  • In-Dash Garmin® RV Navigation System
  • Tire Pressure Monitoring System

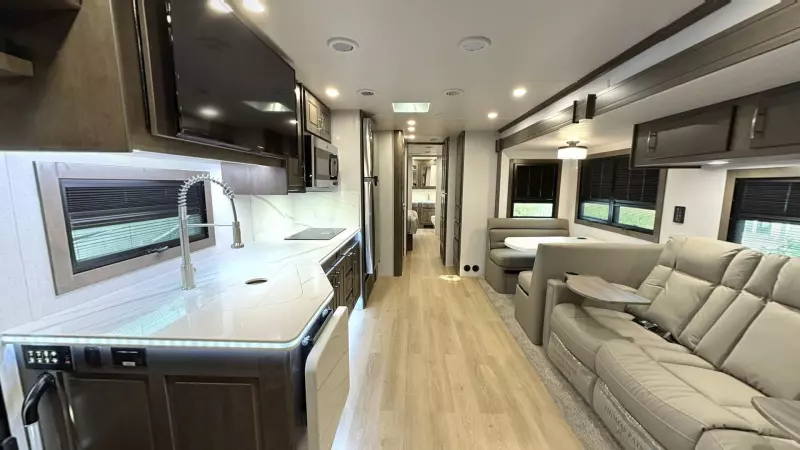

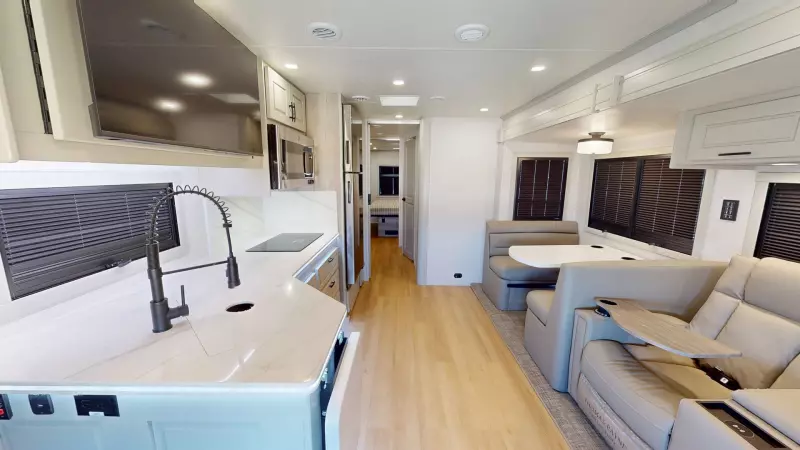

INTERIOR AND EXTERIOR Gallery



MODELS THAT HAVE INDIVIDUAL GALLERIES

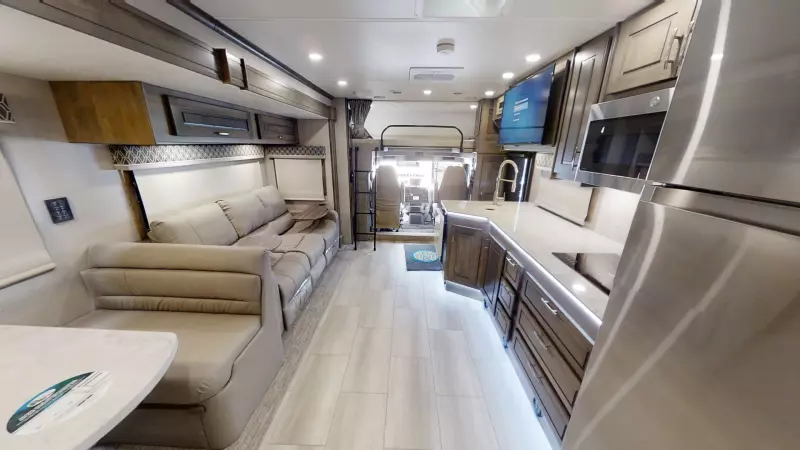

Virtual Tours

34KD

37BH - DSO

37RB

37TS



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


DX3 Brochure
DX3 Brochure

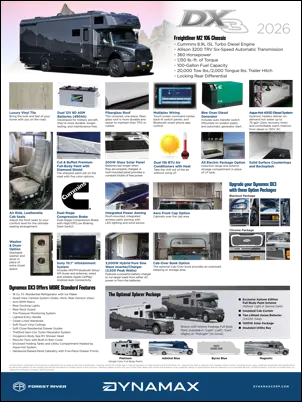

DX3 Poster
