Explore 2027 37BD DX3 Motorhome

Home > DX3 > 37BD

The DX3 37BD floorplan has one entry and two slide outs. Exterior features include: 13'6" awning and outside entertainment. Interiors features include: bunk beds, rear bedroom and bunk over cab.

MSRP Starting At: $456,471 USD*

* MSRP is based on a Standard Built Coach (base price), excluding tax, license, registration, freight, additional options, Dealer Prep & Fees.

Wheelbase: 268"
GVWR: 33,000 lb.
GCWR: 54,000 lb.
GAWR Front: 12,000 lb.
GAWR Rear: 21,000 lb.
Fuel Capacity: 100 gal.
LP Tank Capacity: 86 lb.
Exterior Length: 39' 2"
Exterior Height: 12' 8"
Exterior Width: 101"
Interior Height: 84"
Fresh Water: 94 gal.
Gray Water: 52 gal.
Black Water: 52 gal.
Awning Size: 13'6"

GVWR (Gross Vehicle Weight Rating): – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

37BD Floorplan DX3 Motorhome Features & Options

- Freightliner® M2 106 Plus Chassis (33,000 lb GVWR/54,000 lb GCWR)
- Cummins® L9 Turbo Diesel Engine (450hp/1,250 lb-ft of Torque)
- Allison® 3200 TRV Six-Speed Automatic Transmission
- 4.78 Rear Axle Ratio
- Trailer Hitch (20,000 Tow lb/2,000 Tongue lb) with 7-Way Round Tow Connection
- 100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks) with Equiflo™ Inboard Fuel System
- 6-Gallon Diesel Exhaust Fluid Tank
- 275-Amp Alternator
- Air Brakes with 4-Wheel ABS
- Brake Controller
- C-Brake by Jacobs® with High/Low Settings
- Rear Locking Differential
- Bilstein Gas-Charged Front Shock Absorbers
- Front Sway Bar
- Fuel Filter/Water Separator with Primer Pump
- Airliner® 21,000 lb Rear Suspension
- Cruise Control
- Manual Air Suspension Dump Valve Switch on the Dash
- Quick Disconnect Fitting with Tire Inflation Kit
- Engine Block Heater
- Steel-Reinforced, Aluminum Cab
- Chrome Grille
- Front and Rear Tires: 275/80R22.5 (14 Ply Radials)
- Single Front Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Dual Rear Wheels: Alcoa® Aluminum (22.5" x 8.25") *Outside Rims are Polished
- Valve Extensions
- Tire Pressure Monitoring System
- LED Headlights
- Daytime Running Lights
- Fog Lights
- Tinted Door Glass and Wing Windows

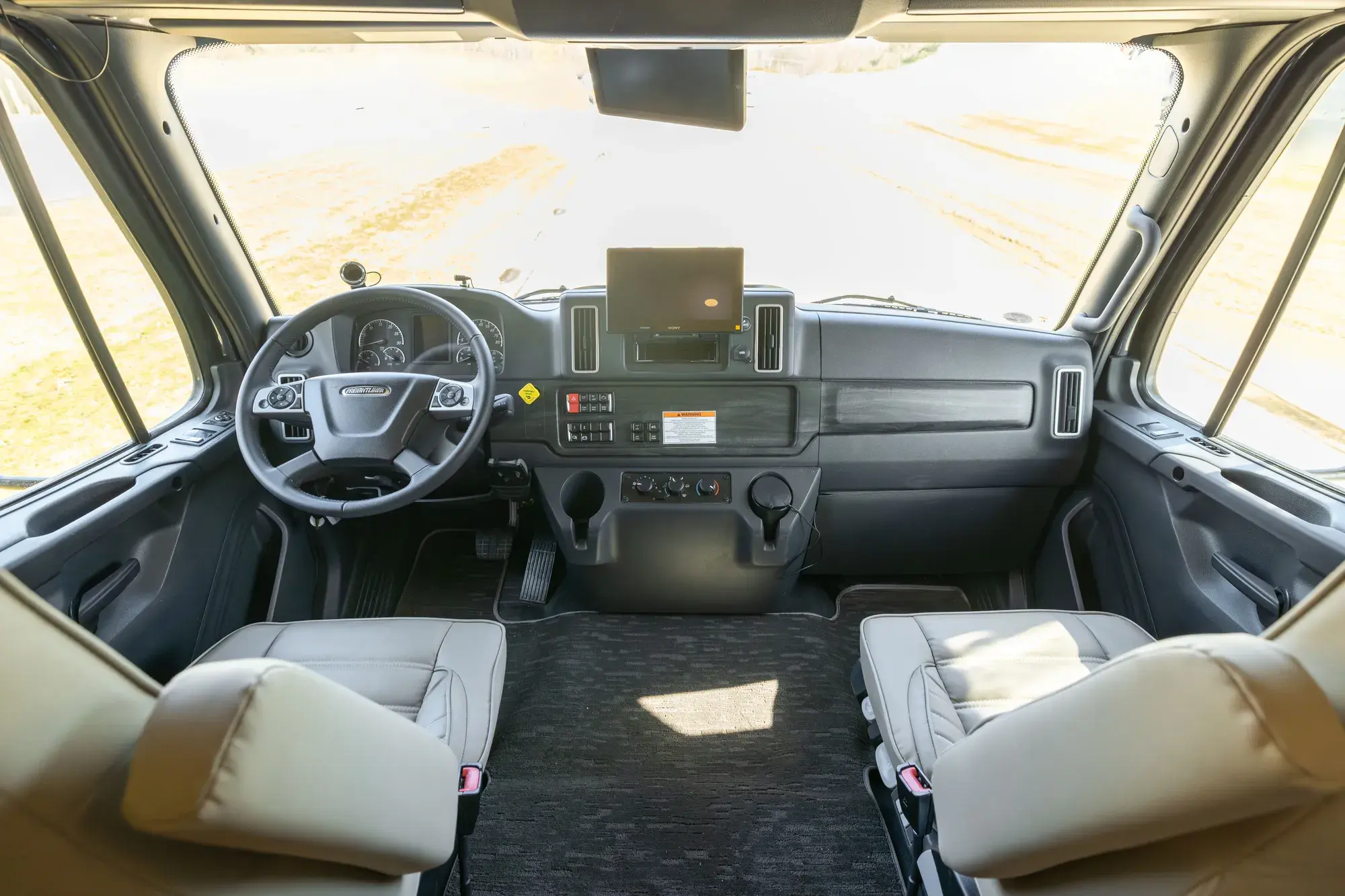

- Leatherette Driver and Passenger Air Ride Seats with Air Lumbar Controls
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
- Sony® 10.1" HD Touchscreen Dash Infotainment System with AM/FM, Bluetooth®, SiriusXM® (tuner and antenna), Wired and Wireless Apple® CarPlay™/Android™ Auto Connectivity, USB-C port, and High-Resolution Audio
- JBL® Premium Cab Sound System: JBL Full Range/Tweeter Coaxial Speakers, Dual Voice Coil Subwoofer, and a High-Efficiency, High-Performing, 4-Channel DSP Amplifier, all Tuned Specifically for the Freightliner M2
- 12V Accessory Ports
- Chassis Battery Shut Off Switch in Cab
- Air Horn
- One Valve Parking Brake System with Warning Indicator
- Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Marker Lights with Separate Interrupter Switch
- Low Air Pressure Light and Buzzer
- Adjustable Steering Column
- 18" Leather-Wrapped Steering Wheel
- Power Remote/Heated Mirrors
- Power Windows and Locks
- 3-Point Seat Belts
- 2" Aluminum-Framed, Laminated Sidewalls with High-Density Block Foam Insulation
- Composite Exterior Fiberglass (No Exterior Wood)
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Foil-Lined Ductwork Throughout
- Fiberglass Rear Cap and Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks
- Dual-Pane, Dark-Tinted, Frameless Rectangular Windows with Built-In Day/Night Shades & Screens
- Seamless Rotocast Storage Compartments with LED Lighting
- Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
- Custom Full Body Paint Package with Scheme-Matching Cab Door Jambs
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield® Paint Protection
- Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor
- Aluminum-Wrapped Slideout Toppers
- LED Patio Light
- Entry Door with Rotary Latch: Dark-Tinted, Frameless Window, and Integrated Shade
- Keyless Entry Touch Pad at Entry Door
- Lighted Acrylic Entry Grab Handle
- Power Entry Steps with Upgraded SeaDek® Step Treads
- Remote Locking System for Exterior Storage Doors and Entry Door
- Exterior Wall-Mounted Entertainment Center with 40" LED Smart TV with Integrated JBL® Sound Bar on Swivel Extension Mount
- Front and Rear LED Clearance and Marker Lighting
- Rear LED Docking Lights
- Polished Stainless Steel Step Treads
- Rear "DYNAMAX" Rock Guard
- Chrome Exhaust Tip
- Luxury Vinyl Tile Throughout
- Woven Vinyl Entry Surround
- Soft-Touch Padded Vinyl Ceiling
- Dimmable LED Recessed Ceiling Lights
- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Trifold Sofa (N/A 32KD)
- Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
- Hardwood Shaker-Style Passage Doors
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Hidden Hinges
- 40" LED Smart TV and Bose® Sound Bar (Living Area) (34KD, 37BD, and 37RB)
- Magnetic Thermal, Reflective Front Privacy Shades
- USB/USB-C Charging Ports
- 18 cu ft Residential-Style Refrigerator w/Ice Maker (N/A 32KD)
- Sealed Gas Range with Glass Cover (N/A 32KD)
- Convection Microwave Oven with Air Fryer
- Solid Surface Countertops w/LED Edge Lighting & Backsplash
- Stainless Steel Sink with Solid Surface Covers
- Residential-Style Stainless Steel Spring Gooseneck Faucet
- Pantry
- Overhead Cabinet Accent Lighting
- Under-Cabinet Lighting
- Maxxair® Power Vent with Built-In Rain Cover

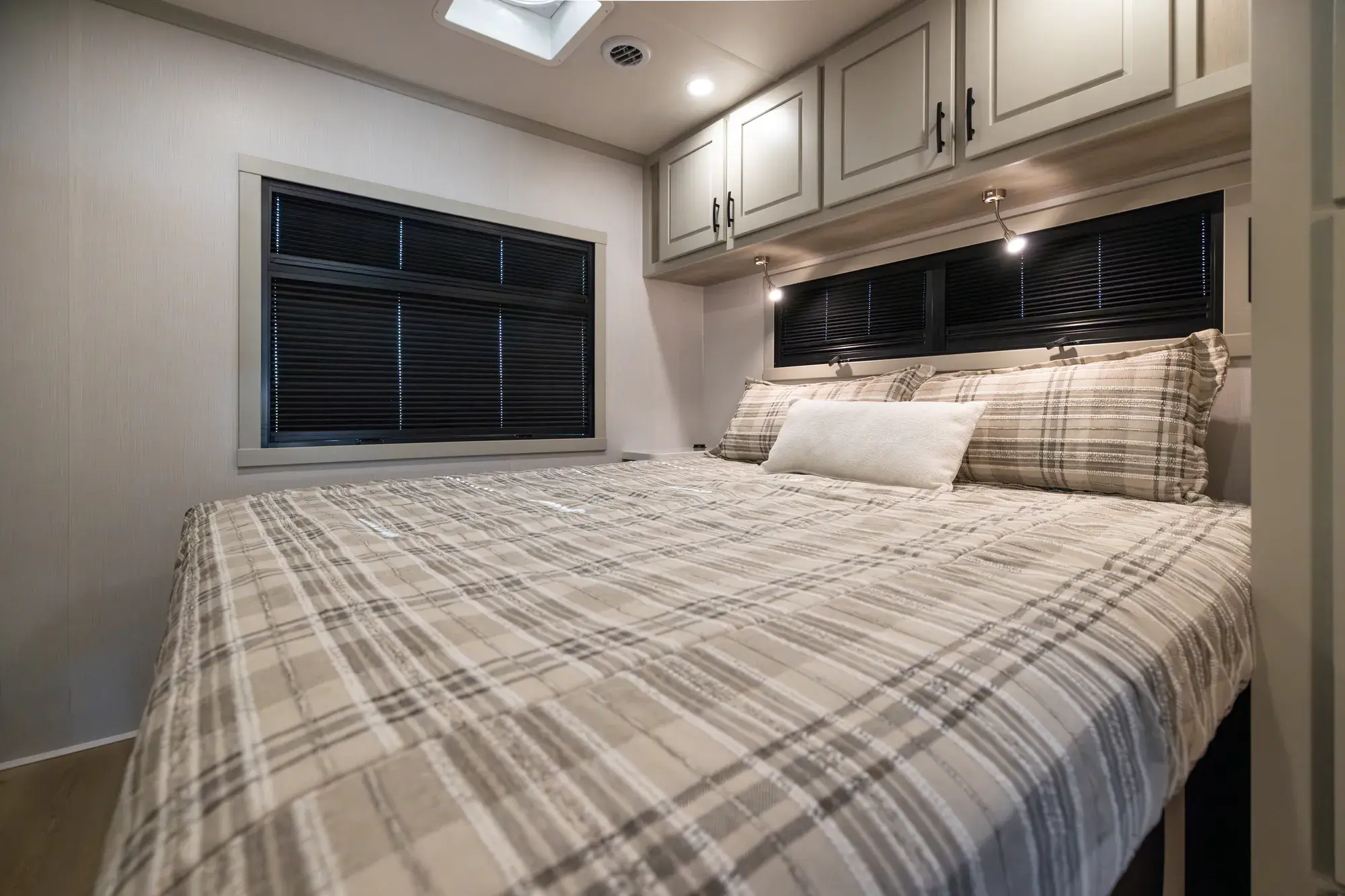

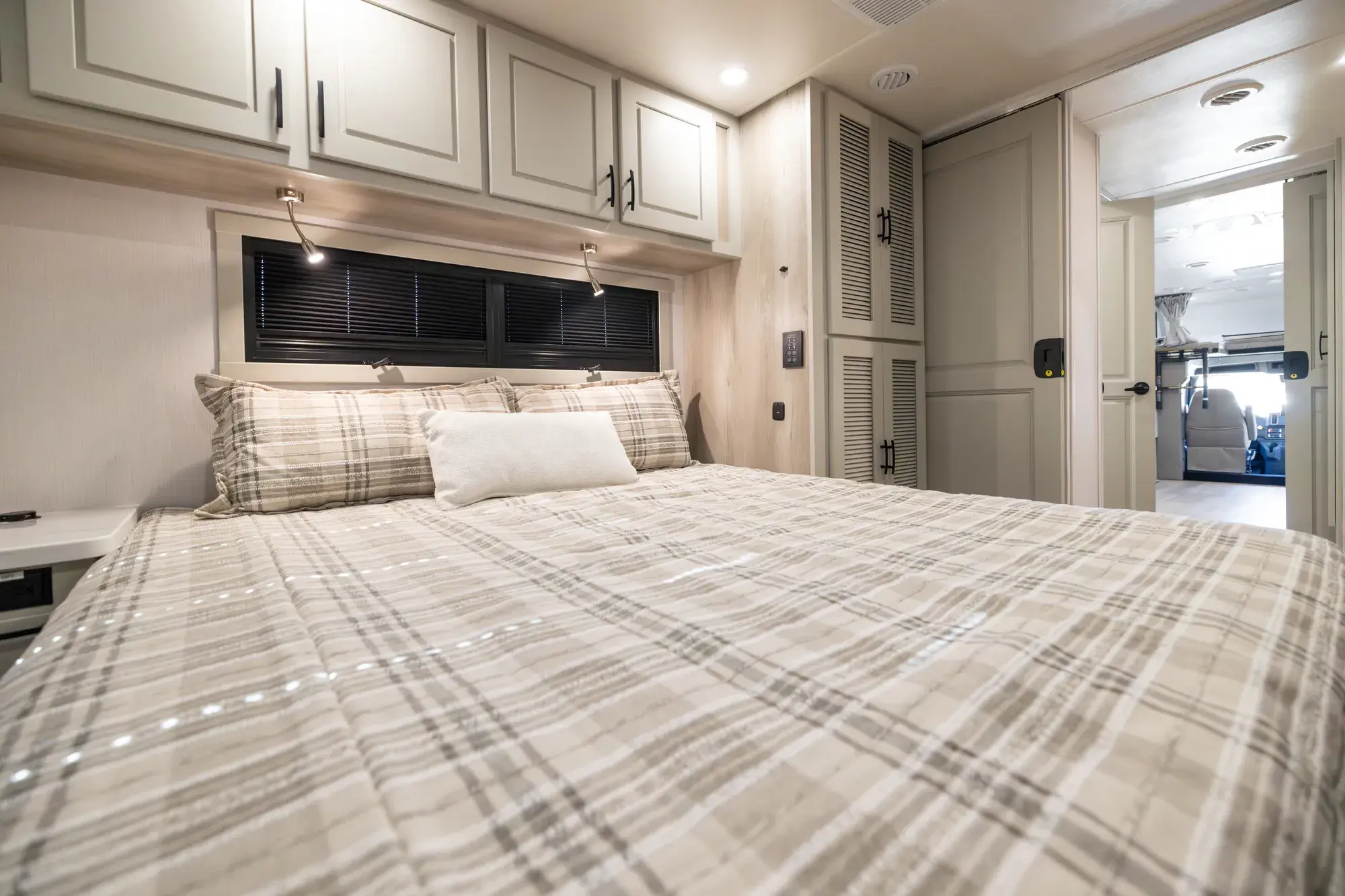

- King Tilt-A-Bed (71" x 78") with Gel-Infused Memory Foam Mattress
- Deluxe Padded Headboard
- Designer Bedding Package

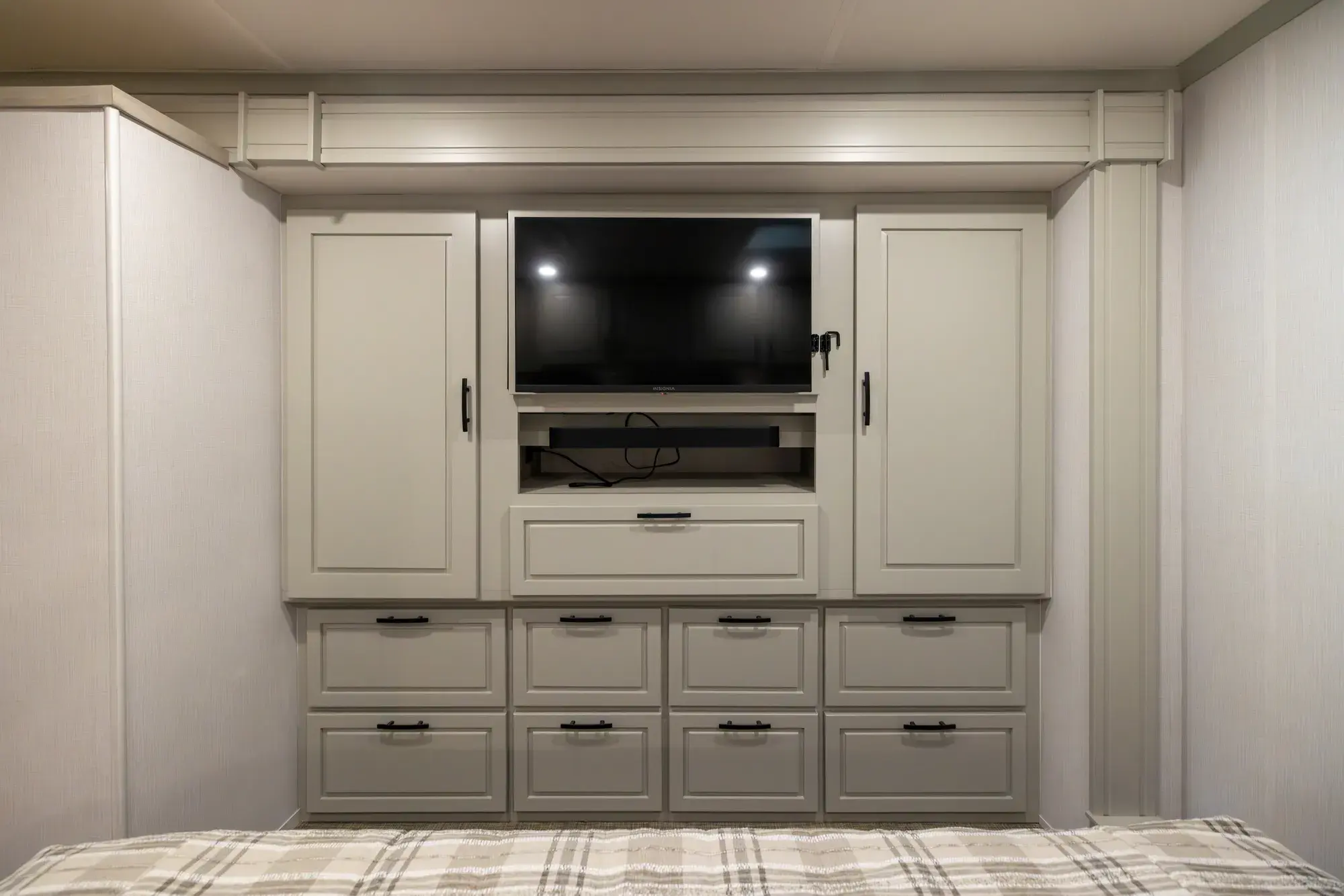

- 32" LED Smart TV
- Bose® Sound Bar (N/A 32KD)
- Cedar-Lined Wardrobe
- Digital Safe in Wardrobe
- Nightstands with Solid Surface Countertops
- LED Reading Lights
- USB/USB-C Charging Ports

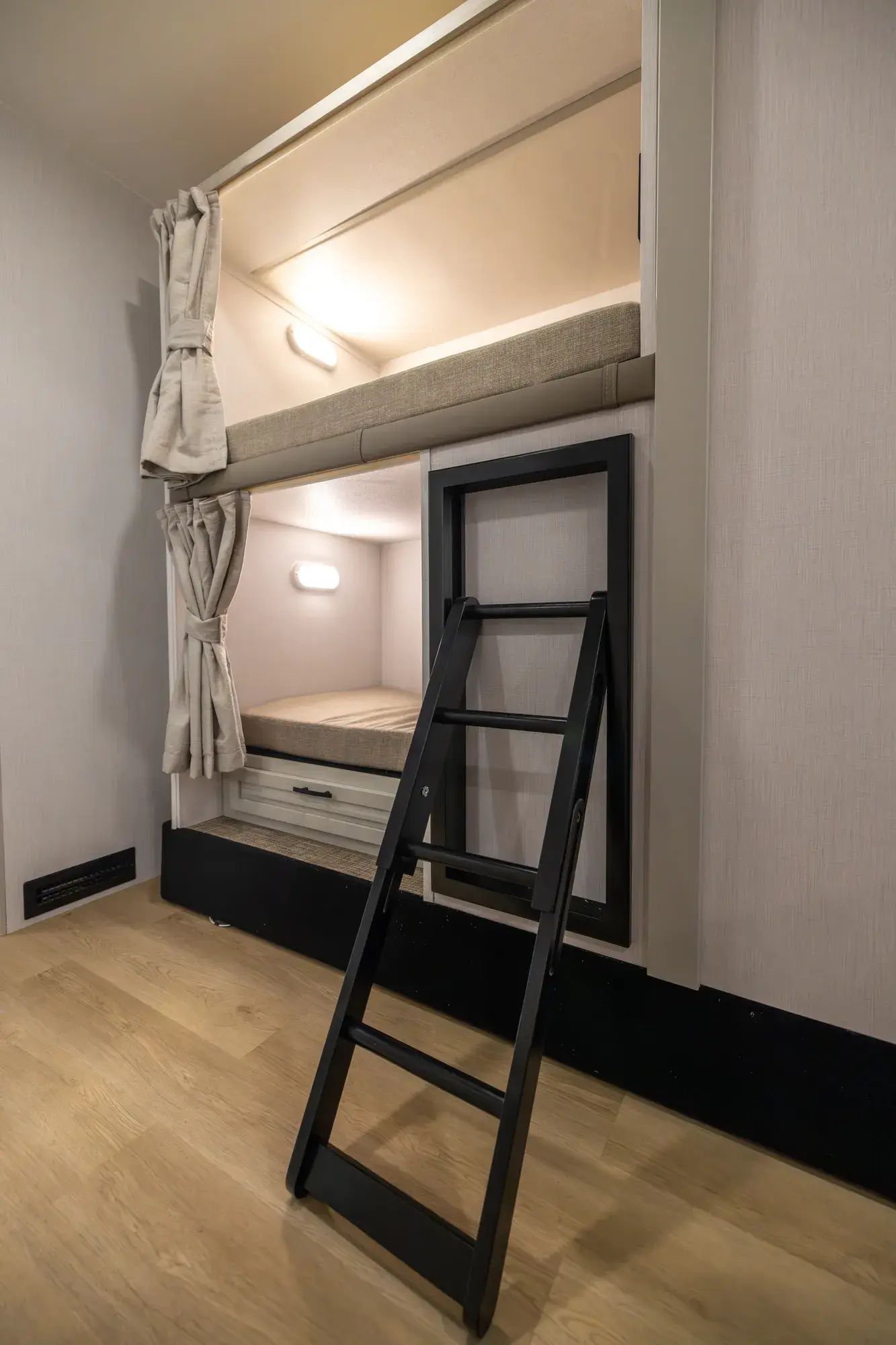

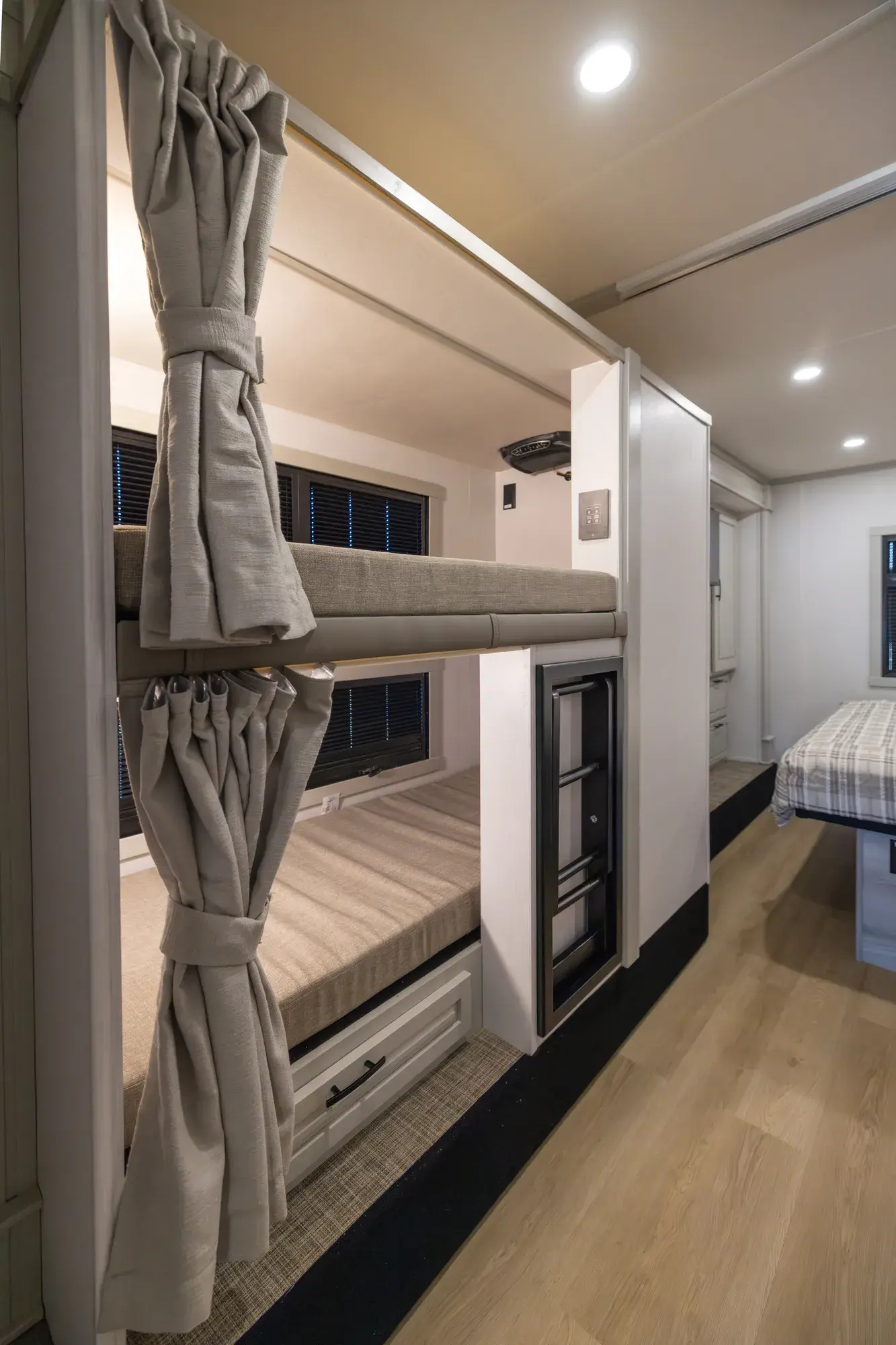

- Bunk Bed Mattresses (28" x 76") and Privacy Partition (37BD)
- Two Bunk CD/DVD Players with Monitors (37BD)

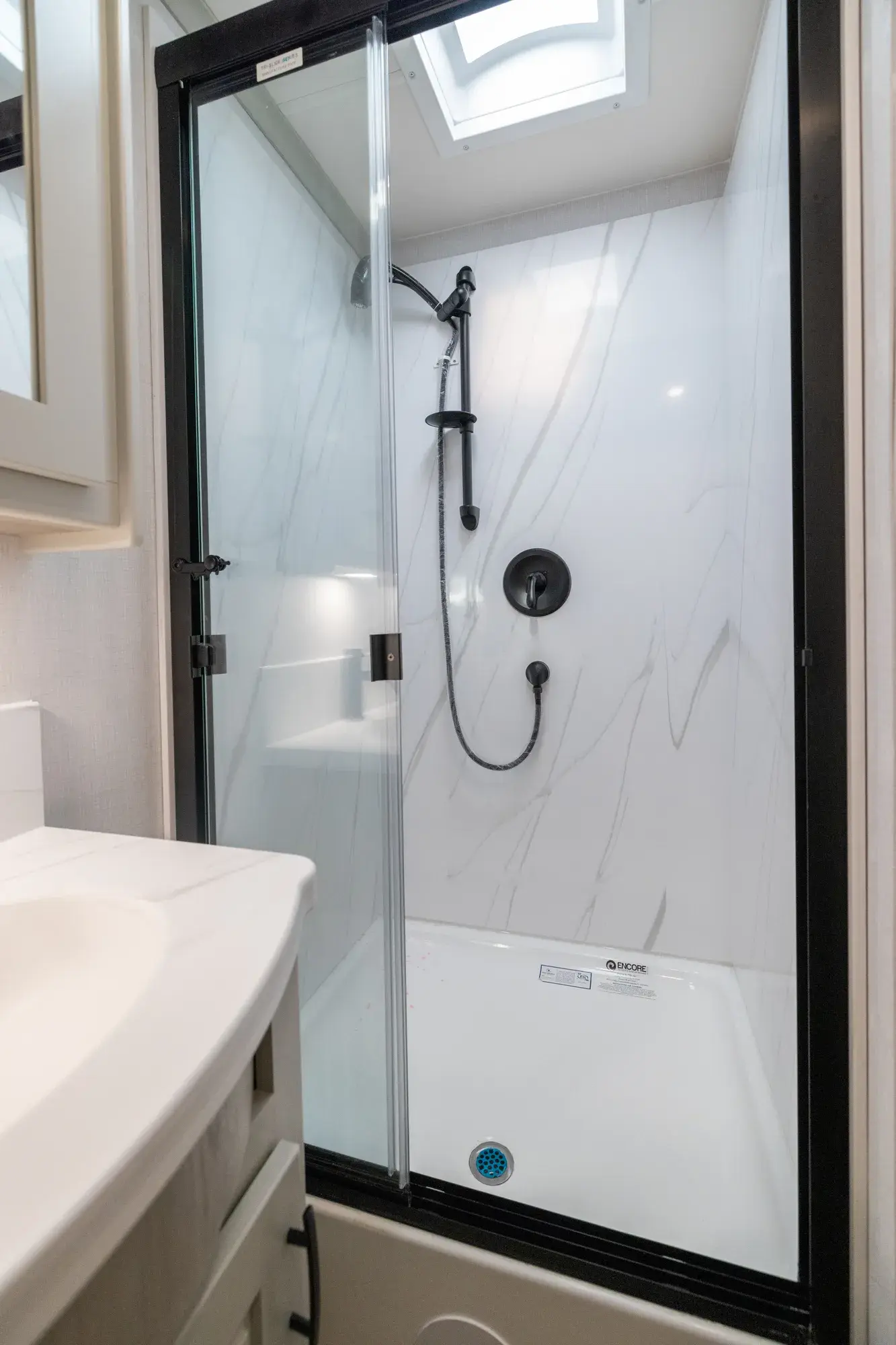

- Solid Surface Shower (36" x 30")
- Glass Shower Door
- Shower Skylight
- Solid Surface Countertop with LED Edge Lighting and Backsplash
- Oxygenics Body Spa® RV Shower Head

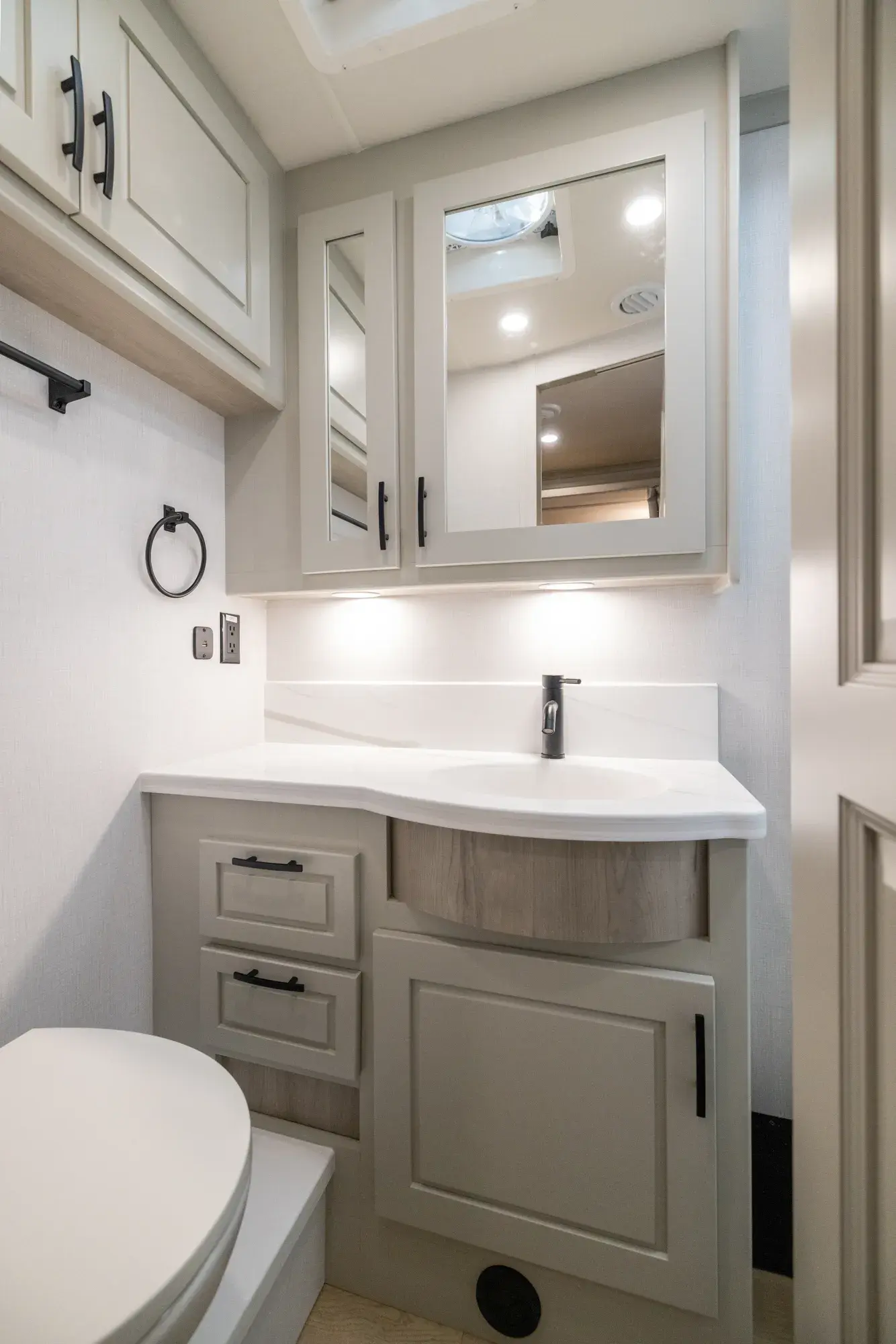

- Under-Mount Sink with Residential-Style Brushed Nickel Faucet (37RB - Two Sinks in Full Rear Bath)
- Porcelain Foot-Flush Toilet (37BD and 37TS)
- Maxxair® Power Vent with Built-In Rain Cover
- Two 12V Group 8D AGM Deep-Cycle, Maintenance-Free Batteries (490 Ah Total)
- Firefly Multiplex Wiring with Touchscreen Command Center, Switch Panels, and Smart Phone App Control
- Battery Disconnect
- 50-Amp Service with 36' Power Cord Reel
- 3,000W Hybrid Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
- 200W Glass Solar Panel with 30 Amp Controller
- 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start
- Energy Management System (EMS)
- Dual Ducted, Low-Profile 15,000-BTU A/Cs with Heat Pumps
- Aqua-Hot® 400D Diesel System
- Stackable Washer/Dryer Prep (N/A 32KD)
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Exterior Shower in Service Bay
- Power Water Hose Reel in Service Bay
- Exterior GFCI Receptacle
- Starlink Satellite Internet system (Roof-Mounted)
- Winegard OTA HDTV Antenna
- Winegard In-Motion Satellite
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup in Service Bay
- Thetford® Sani-Con Turbo Macerator System
- Black Tank Flush
- SureLevel® Tank Level Monitoring System
- Utility Compartment Heated by Aqua-Hot® System
- Enclosed Holding Tanks Heated by Aqua-Hot® System
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon Monoxide, LP, and Smoke Detectors
- Fire Extinguisher

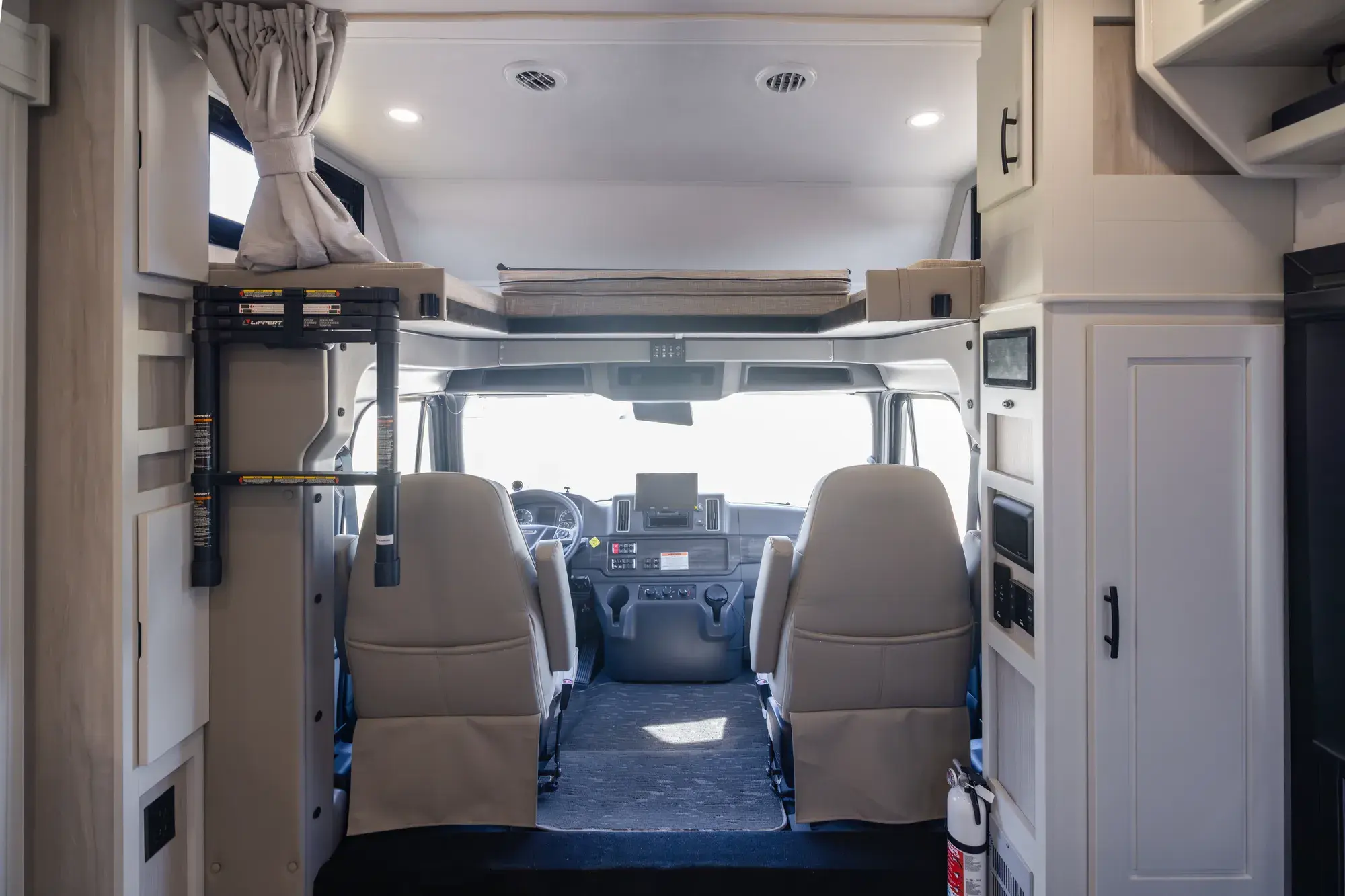

- Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets

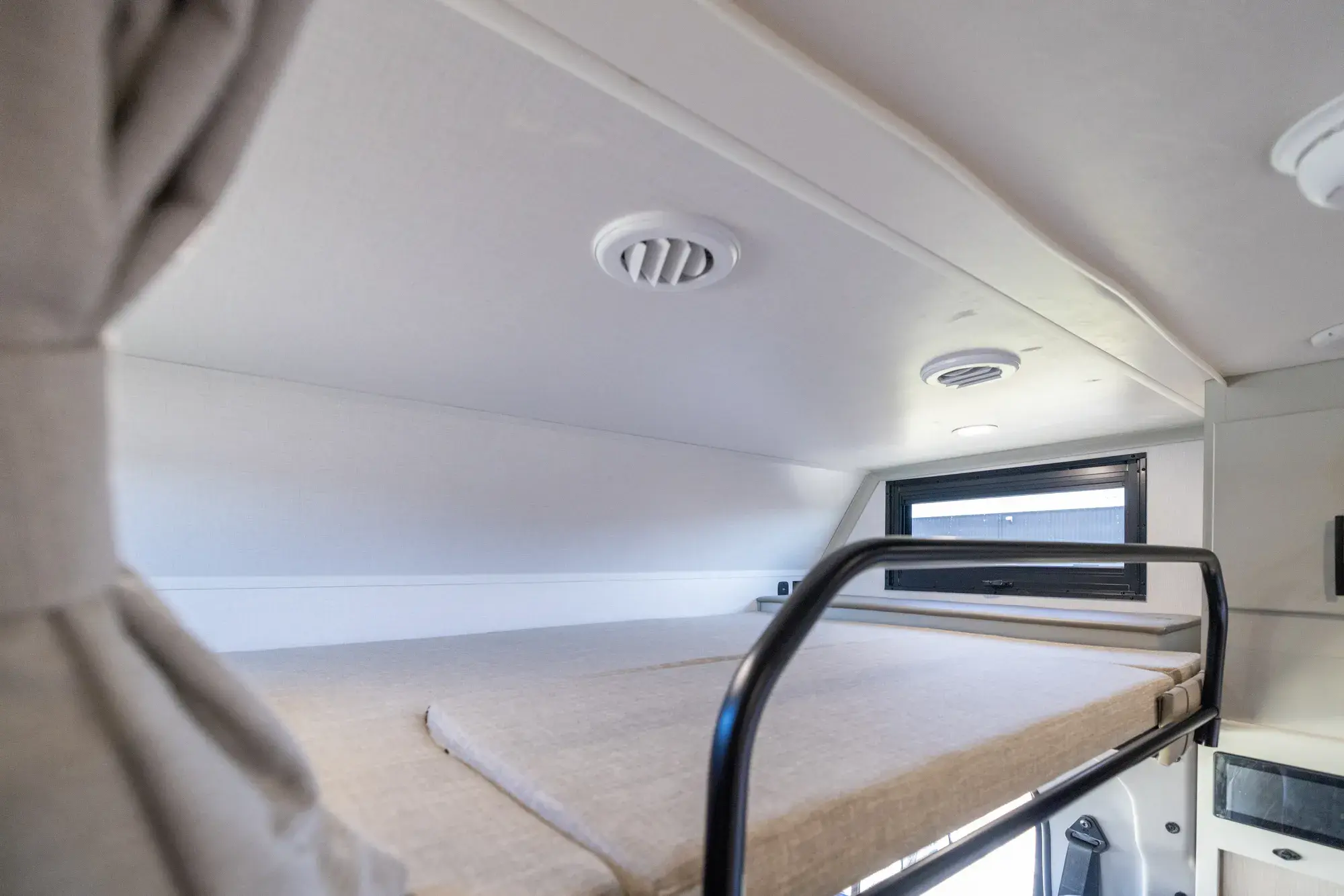

- Extended Fiberglass Front Cap with Cab-Over Bunk Mattress (50" x 79") and Privacy Curtain
- Black Out Package: Cab Entry Steps, Side Mirrors, Rock Guard, Wheels, Headlight Bezels, Exterior Grab Handle Trim, and Custom Grille and Vent
- Chrome Appearance Package: Custom Grille and Vent, Dual Roof Mounted Air Horns, and Baggage Door Handles
- Single Color Full Body Paint
- 12V 15 cu ft 3-Door Compressor-Driven Refrigerator in Place of Standard Refrigerator

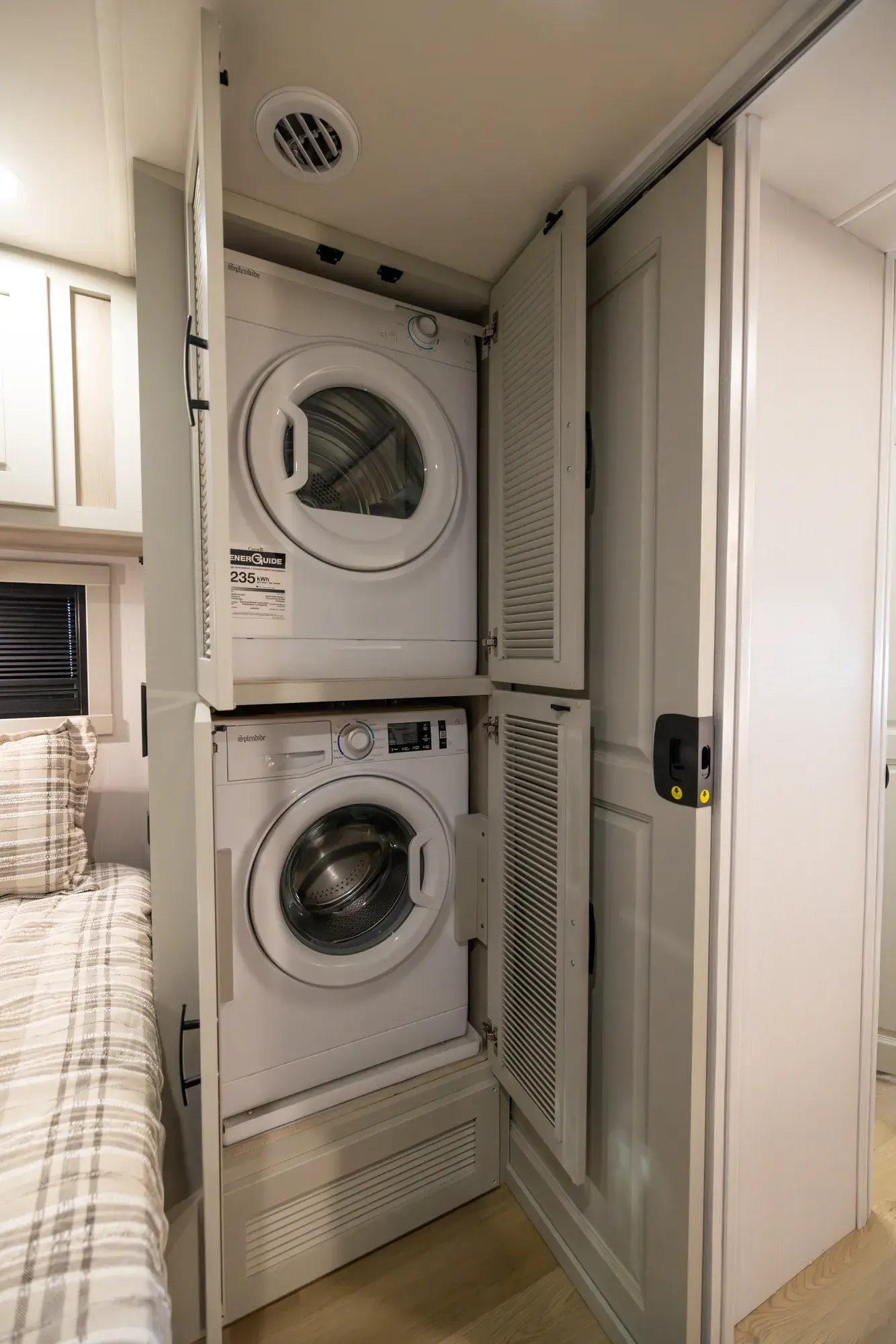

- Washer/Dryer (N/A 32KD)
- Dual, Power Reclining Theater Seats in Place of Dinette (N/A 34KD, 37RB; Standard on 32KD)

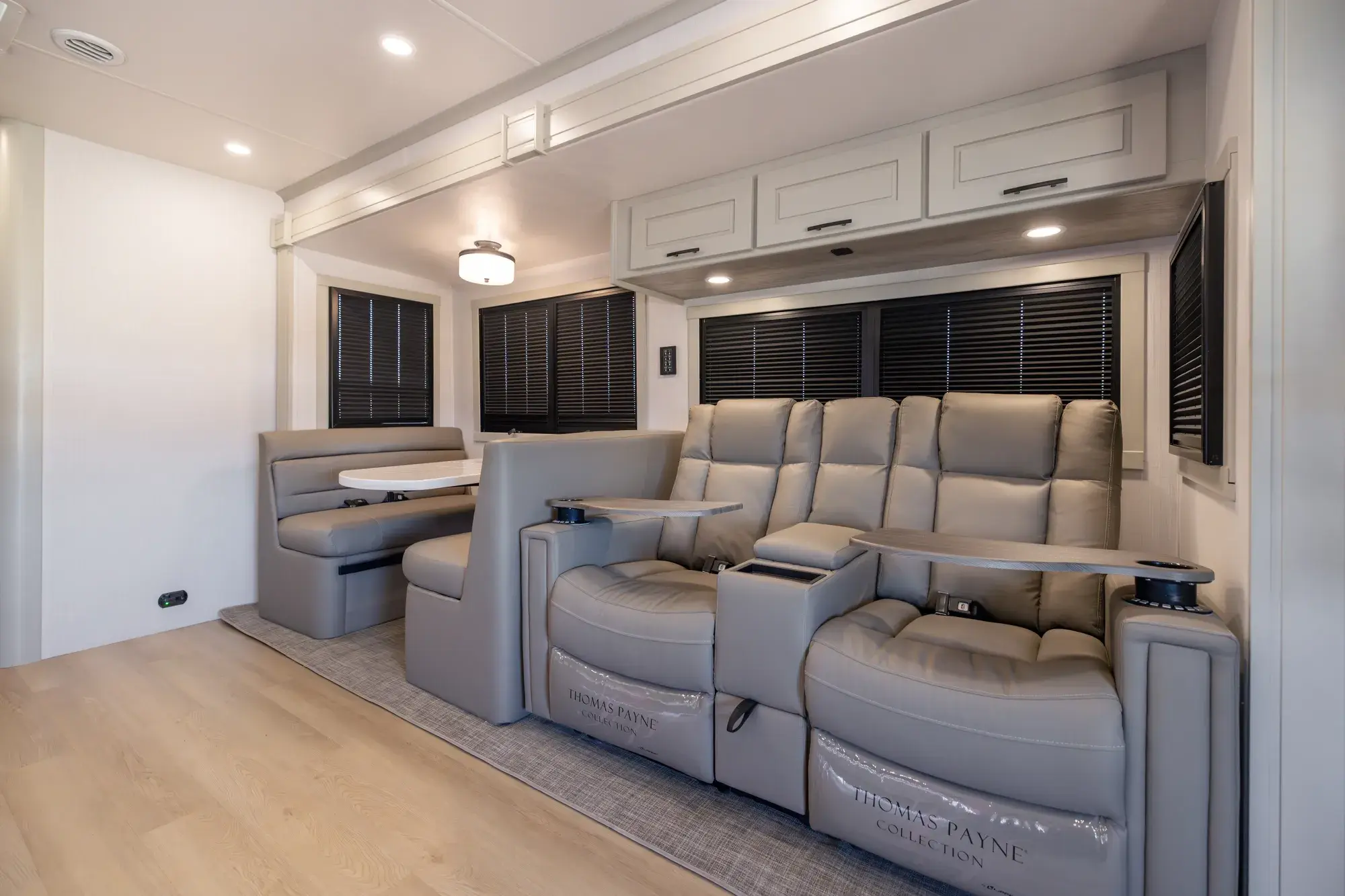

- Three-Seat, Power Reclining Theater Seats in Place of Dinette (34KD and 37RB - Only Outer Seats are Powered)
- All-Electric Package: Induction Range and Exterior Storage Compartment in Place of LP Tank (Induction Range Standard on 32KD)
- Xplorer Package: Insulated Cab Curtain, Three Lithium House Batteries (720 Ah Total), 1,000W Solar Package, Insulated Utility Bay, and Access to Exclusive Xplorer Package Paint Scheme (Dark, Light, or Midnight)
